DIODE LED 24V NEON BLAZE™ RGB
The Latest in Continuous Color Saturation

Effective May 1, 2025, DIODE LED Average Increase of 10.0% Reflects a Measured Response to Dramatically Rising Costs,
While We Observe Where Tariffs Settle. This Increase Applies to ALL DIODE LED Items Until Further Notice.
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 440-715-5539 EMAIL US
WE OFFER ALL DIODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 Diode LED 2023 Catalog
Visa Master Discover Networks
Neon
Neon Blaze		 Neon
Neon Blaze Application
CLICK Above Application IMAGE for LARGER VIEW

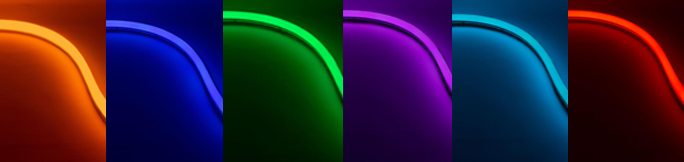

NEON BLAZE™ is the ultimate diffused, color changing RGB lighting solution into your project. With Zero Line Diffusion™ technology, LED NEON color is saturated from end to end. Choose from two outputs in lengths up to 65 feet of total color control. Factory tailored options only with your choice of connection type and mounting option. See Specification Sheet for details.

• Mimics Traditional Neon • Zero Line Diffusion
• Tight Bend Radius • Continuous Color Saturation
• Lettering • Accent Lighting
• Side Emitting

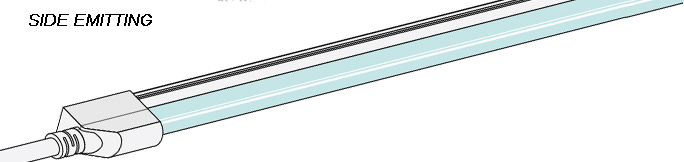

SIDE EMITTING
NEON BLAZE 		TOP EMITTING
NEON BLAZE 		SIDE EMITTING
NEON BLAZE RGB		 NEON BLAZE RGB
POWER SUPPLIES and CONTROLS
CLICK IMAGE for LARGER VIEW
Neon
Neon
CLICK any ICON Below for Full Explanation:
UL RoHS 24V No Indoor Dimmable
UL
CERTIFIED		 RoHS
COMPLIANT		 24V DC DO NOT CONNECT TO
120V AC		 Indoor /
Outdoor Use 		Dimmable
Click Button for NEON BLAZE RGB SIDE EMITING Specifications PDF Neon
Click Button for NEON BLAZE RGB Installation PDF Neon
Click Button for Full 5 Year
Warranty Information		 Diode
BACK to TOP

TECH SPECS
Side
Light Beam Angle  120 degree
Connection Type See specification sheet for connection options.
Dimmable Yes
Field Cuttable Yes - 2.45" Cut Points
Color Rendering Index (CRI) 80+
Wattage 1.2W or 4.4W per FT
Voltage 24VDC
Environment Indoor / Outdoor Wet Location IP65
LED Chip Type 2835 SMD Chip
Max. Run 65' 6" 1.2W / 16.4' 4.4W
Certification UL Listed 2108
Warranty  5-Year Limited
CLOCK IMAGE for LARGER VIEW
SIDE-EMITTING NEON BLAZE RGB
ITEM COLOR
TEMP		 LUMEN
per FT
 0.75"H x 0.37"W POWER
CONSUMPTION 		PRICE
LENGTH
DI-24V-SE-NBL1-RGB-65 RGB 3 (blue), 14 (green), 2 (red),
20 (RGB)		 65.6 ft. / 20m

Maximum Run 		1.2W / ft. $3198.150
DI-24V-SE-NBL4-RGB-16 RGB 6 (blue), 30 (green), 9 (red),
42 (RGB)		 16.4 ft. / 5m

Maximum Run		 4.4W / ft. $876.60
Custom Length Ordering
NEON BLAZE RGB is factory-assembled to your specific project to order in our California manufacturing plant. We offer custom-sealed, single-run lengths up to 65.6 feet, with quick turnaround, NEON BLAZE RGB is the only solution for Zero Diffusion Color Changing.
- Please Contact Us for Your Custom Length Price -
440-715-5539 / ILLUMENATE@ME.COM
ORDERING DIAGRAMOrdering
BACK to TOP

CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-Dimmable Drivers		 Hard-Wired
Dimmable Drivers		 12V and 24V
DRIVER / DIMMER		 REIGN
In-Wall Controls		 In-Line Controls
Plug-In Hard-Wired Hard-Wired Hard-Wired In-Wall In-Line
Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch
SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch
