DIODE LED BROADWAVE® 120V LED Wall Washer
Four Stories of Full-Color RGB-W Illumination

Effective May 1, 2025, DIODE LED Average Increase of 10.0% Reflects a Measured Response to Dramatically Rising Costs,
While We Observe Where Tariffs Settle. This Increase Applies to ALL DIODE LED Items Until Further Notice.
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 440-715-5539 EMAIL US
WE OFFER ALL DIODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 Diode LED 2023 Catalog
Visa Master Card Discover Networks Solutions Secure
The BROADWAVE LED Wall Washer brings dynamic architectural lighting to both indoors and outdoors. This lighting solution delivers RGBW full-color illumination up to 4 stories and daisy chains up to 30 fixtures for small to medium-sized lighting applications to light up architectural accents and surface features. BROADWAVE easily integrates with DMX 512 control systems and features robust construction, making it a perfect choice for commercial and residential projects.
BROADWAVE FIXTURE
SPECIFICATIONS and PRICING		 BROADWAVE FIXTURE
ACCESSORIES
CLICK any ICON Below for Full Explanation:
UL Wet or Dry Location
UL
LISTED		 Indoor or
Outdoor


CLICK IMAGE for LARGER VIEW
DL-120V-BW-WW-RGBW-4F-BL
DL-120V-BW-WW-RGBW-2F-BL
ITEM DL-120V-BW-WW-RGBW-4F-BL DL-120V-BW-WW-RGBW-2F-BL
Voltage 120V -270VVAC
Wattage 25W 12W
Lumens RGBW 1125 Lm. 540 Lm.
Max. Run 30 Fixtures
CRI 80+ (4000K)
Beam Angle 30 x 85°
Dimensions - L x W x H 24" x 1.75" x 2.74" 48" x 1.75" x 2.74"
TM-21 (LM-80) <50,000 hours
Environment Outdoor / Wet Location (IP65)
Ambient Temperature -40 - 122°F (+20 - 50°C)
Control Integrated RDM DMX Decoder
Certification UL Listed
Warranty 5 Year
PRICE $900.00 $540.00
• Wall Waching
• Facade Lighting
• Vaulted Arches and Ceilings
• General Architectural Lighting
Click Button for PDF BROADWAVE LED Installation Guide PDF Wiring Diagram
Click Button for BROADWAVE PDF Specifications OPTICS LED PDF Specifications
Click Button for Full 5 Year
Warranty Information		 Diode LED Warranty
BACK to TOP


CLICK IMAGE for LARGER VIEW
BROADWAVE ACCESSORIES

DI-BW-WW-RGBW-
BRKT-BL

DI-BW-WW-RGBW-
TERM-BL

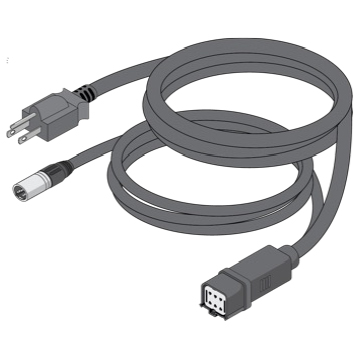

DI-BW-WW-RGBW-
INPUT-BL

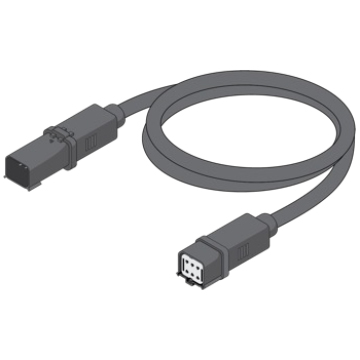

DI-BW-WW-RGBW-
1EXT-BL

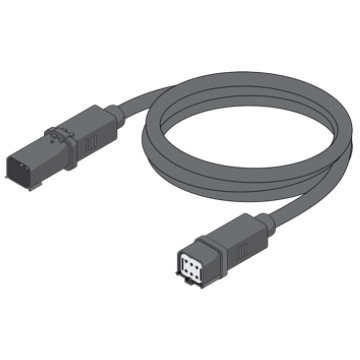

DI-BW-WW-RGBW-
6EXT-BL

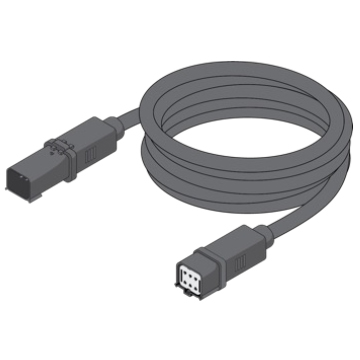

DI-BW-WW-RGBW-
15EXT-BL
DI-NO-CUTTER DI-NO-CUTTER DI-NO-CUTTER DI-NO-CUTTER DI-NO-CUTTER DI-NO-CUTTER
Hinged Bracket Termination Cap 72" Input Cord 12" Extension Cord 72" Extension Cord 180" Extension Cord
BROADWAVE (2023) Hinged Bracket, Black, 2-Pack

BROADWAVE (2023) Termination Cap, Wet Location Connector, Black
Input Cord, 6 Feet, Wet Location Connector, Nema 5-15P Plug
Extension Cord, 1 Foot, Wet Location Connector, Black
Extension Cord, 6 Feet, Wet Location Connector, Black
Extension Cord, 15 Feet, Wet Location Connector, Black
$32.40 $24.30 $90.00 $81.00 $108.00 $135.00
