DIODE LED CASCADE 2 Light Bars

Effective May 1, 2025, DIODE LED Average Increase of 10.0% Reflects a Measured Response to Dramatically Rising Costs,
While We Observe Where Tariffs Settle. This Increase Applies to ALL DIODE LED Items Until Further Notice.
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 440-715-5539 EMAIL US
WE OFFER ALL DIODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 Diode LED 2023 Catalog
Visa Master Card Discover Networks Solutions Secure

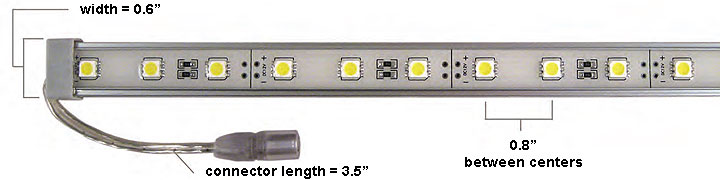

The CASCADE Light Bar is twice as bright as the SUNRISE Light Bar, using high-power tri-chip SMD bulbs. It’s dimmable, waterproof (but not submersible), and wet location rated (IP68). With its compact size, this super bright fixture makes a great alternative to the fluorescent tube. This light bar requires a low amount of electricity to power it, only 3.6 - 7.2 Watts per bar, and gives off very little heat, making it perfect to light heat-sensitive items such as plants, food, wine, art, etc. The CASCADE Light Bar can be used in many indoor and outdoor applications:

Each CASCADE bar comes with two mounting clips and screws, and a pair of solder connectors for connection to a hard-wired driver. Additional CASCADE mounting clips (DI-0752) are available in packages of ten.

Not submersible or for use in or around chlorinated or salt water.
CASCADE 2
SPECIFICATIONS		 CASCADE 2 LIGHT BAR
CONNECTORS		 CASCADE 2 LIGHT BAR
POWER SUPPLIES and CONTROLS
Cascade
CLICK any ICON Below for Full Explanation:
ETL 12V DC No 120V Wet or Dry Location Dimmable
ETL
CERTIFIED		 12V DC NO
120V AC		 Indoor or
Outdoor		 Dimmable
• Patio, deck, yard, garden, greenhouse, and pool lighting • Kitchens, bathrooms, and laundry rooms
• Basements, pool houses, and garages • Spas, restaurants, bars, lounges, clubs, and coffee shops
• Garages, walk-in coolers, and freezers • Lighting wine caves (no UV emissions and low heat)
• Building exteriors and architectural models • In bookshelves, cupboards, closets, and drawers
• Coin-operated vending machines and arcade games • Toe-kick, niche , and uplighting
• Vehicular accent lighting for cars, trucks, limousines, and RV's (no transformer needed) • Motor boats, fishing boats, yachts, and cruise ships
Click Button for PDF Wiring Diagram PDF Wiring Diagram
Click Button for CASCADE LED PDF Specifications CASCADE LED PDF Specifications
Click Button for Full 5 Year
Warranty Information		 Diode LED Warranty
BACK to TOP

TECH SPECS
DISCONTINUED - NO STOCK - For INFORMATION ONLY
Sold in 2 Different Lengths Width : 0.4 in. / Depth: 0.4 in.
100% Dimmable Fixture Surface Temp.: 68° - 90° F
Color Temperature Tunable Range: 2700K - 5000K LED Type: 3528 SMO LED
Beam Angle: 120° LED Spacing: 0.65 in. between centers
Working Voltage: 12V DC Lifespan: 50,000+ hours
LEDs Per Fixture Vary Lumens Per Fixture Vary
IP Rating: IP68 UV/IR Radiation: None
Power Consumption Varies Per Fixture Lifespan: 50,000+ hours

ITEM LENGTH COLOR COLOR
TEMP.		 LUMENS POWER
CONSUMPTION		 CRI* # OF
LEDS		 MAX BARS
PER RUN		 PRICE
DI-12V-CS230-8001 12 in. warm white 3000k 255 3.4W 81 15 6 $40.50
DI-12V-CS263-8001 12 in. cool white 6300k 328 3.4W 82 15 6 $40.50
DI-12V-CS230-8002 24 in. warm white 3000k 584 6.7W 81 30 3 $70.20
DI-12V-CS263-8002 24 in. cool white 6300k 655 6.7W 82 30 3 $70.20
* CRI = Color Rendering Index
BACK to TOP

CLICK IMAGE for LARGER VIEW
CASCADE WATERPROOF BAR CONNECTORS
DI-0710F / DI-0710M DI-0757 / DI-0758 / DI-0759 DI-0725 DI-0755 / DI-WPSL
DI-0710 DI-0757, DI-0758, DI-0759, DI-0709 DI-0725 DI-0762
Waterproof Plug to DC Adapter Connector Female / Male Waterproof Male to Female Extension Cables Waterproof Solder Connector Pair Waterproof End Caps
Waterproof Sealant
Connects the Light Bar to a Plug-In Adapter and other DC accessories.
Creates an extension between Light Bars.
Connects the Light Bar to a Hard-Wired Driver. Pair included with each bar.
Pack of 10 End Caps.

45g Tube of Sealant.
.7.5” Length x 0.4” / 0.3" Width 0.3” Width 4.7” Length x 0.3” Width
$8.10 / $8.10
Item Length Price
DI-0757 6" $4.50
DI-0758 12" $7.20
DI-0759 24" $8.10
$4.50 $5.40 / $8.10
BACK to TOP

CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-Dimmable Drivers		 Hard-Wired
Dimmable Drivers		 12V and 24V
DRIVER / DIMMER		 REIGN
In-Wall Controls		 In-Line Controls
Plug-In Adapters Hard-Wired Non-Dimmable Drivers Hard-Wired Dimmable Drivers Hard-Wired Dimmable Drivers In-Wall Controls In-Line Controls
Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch
SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch
