Diode LED
ENGINEERED, ASSEMBLED, BUILT or MODIFIED
in the USA		 by
AMERICAN WORKERS
DIODE LED VALENT X Wet Location
Perfectly Diffused LED Tape Light
500 Lumen Range

Effective May 1, 2025, DIODE LED Average Increase of 10.0% Reflects a Measured Response to Dramatically Rising Costs,
While We Observe Where Tariffs Settle. This Increase Applies to ALL DIODE LED Items Until Further Notice.
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 440-715-5539 EMAIL US
WE OFFER ALL DIODE LED ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US
These Cards Accepted and PROCESSED SECURELY

CLIOCK CATALOG

BUTTON for

COMPLETE SELECTION

 Diode LED 2023 Catalog
Visa Master Card Discover Networks Solutions Secure

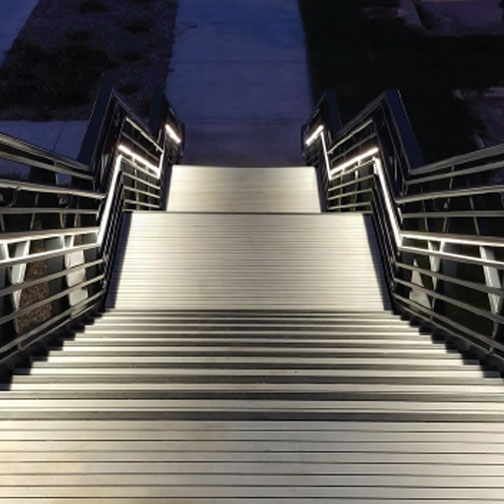

Valent X Application Valent X Application
Valent X WET Application Valrnt X WET Tape Light
CLICK Above Application IMAGE for LARGER VIEW
If you need tight-pitch, high lumen lighting for wet locations, VALENT X WET is the solution. Designed and engineered to provide high quality natural and diffused flexible linear lighting for any project. VALENT X Wet Location has 95+ CRI and high performing R-values that provide precision color rendering, and is suitable for applications that are prone to splashing, spraying, or rain. Field-cut table and available in the Diode LED Tailored Lighting Program.

Features and benefits of VALENT X WET LED Tape Light include
• 95+ CRI: True-to-life color rendering
• 100 - 800 lumens per foot
• Wide CCT options
• Perfect diffusion
• Customized solutions
• Assembled and shipped from Diode LED's Northern California facility
VALENT X WET
SPECIFICATIONS		 WET LOCATION
CONNECTORS		 CHROMAPATH CHANNELS
and DIFFUSERS		 POWER SUPPLIES
and CONTROLS
CLICK IMAGE for LARGER VIEW
Valent X
CLICK any ICON Below for Full Explanation:
UL RoHS 24V DC No 120V Wet or Dry Location Dimmable
UL
CERTIFIED		 RoHS
COMPLIANT		 24V DC DO NOT CONNECT TO
120V AC		 Indoor or
Outdoor Use 		Dimmable
Click Button for VALENT X WET Specifications PDF Valent X WET Specifications
Click Button for VALENT X Installation PDF Valent X Installation Guide
Click Button for Full 12 Year
Warranty Information		 Diode LED Warranty
BACK to TOP

TECH SPECS
Light Beam Angle  120 degree
Connection Type See specification sheet for connection options.
CRI Range  90+
Cuttable Increments 1.32"
Wattage 4.6W per FT
Voltage 24VDC
LED Chips per Foot 72
LED Chip Spacing (between centers) 0.18 in.
LED Chip Type 2835 SMD Chip
Max. Run 30 Feet
Warranty  12-Year Limited
COLOR TEMPERATURE ILLUSTRATION
KChart

VALENT X 500 WET - 500 LUMEN RANGE Strip Light - 30 Foot Maximum Run
ITEM LENGTH COLOR COLOR
TEMP.		 CRI LUMENS / FT. POWER
CONSUMPTION / FT.		 # OF
LEDS / FT.		 PRICE
DI-24V-VLX5-24-W016 16.3 ft. / 5m warm
white		 2400K 95+ 466 4.6W 72 $819.00
DI-24V-VLX5-24-W100 100 ft. $4500.00
DI-24V-VLX5-27-W016 16.3 ft. / 5m warm
white		 2700K 95+ 437 $819.00
DI-24V-VLX5-27-W100 100 ft. $4500.00
DI-24V-VLX5-30-W016 16.3 ft. / 5m warm
white		 3000K 95+ 469 $819.00
DI-24V-VLX5-30-W100 100 ft. $4500.00
DI-24V-VLX5-35-W016 16.3 ft. / 5m neutral
white		 3500K 95+ 492 $819.00
DI-24V-VLX5-35-W100 100 ft. $4500.00

WET LOCATION CONNECTORS
DI-10MM-WL-SCP
DI-10MM-WL-DC-F
DI-10MM-WL-DC-M
DI-10MM-WL6-EXT
DI-10MM-WL12-EXT
DI-10MM-WL24-EXT
DI-10MM-WLSP2
DI-10MM-WLSP3
DI-10MM-WLSP5
DI-0755 / DI-WPSL
SCP DI-10MM-WL-DC-F DI-10MM-WL-DC-M DI-0725 DI-10MM-WLSP2 DI-10MM-WLSP3 DI-10MM-WLSP5 DI-0762
Wet Location
Splice Connector Pair 		Wet Location Female / Male
Connector		 Wet Location Male-to Female
6" / 12" / 24" Extension Cable		 Wet Location
2-Way / 3-Way / 5-Way
Splitter		 Waterproof End Caps
Waterproof Sealant
Connects the Light S rip to a Hard-Wired Driver.
Connects the Light Strip to a Plug-In Adapter and other DC accessories.
Creates an extension between Light strips and Poser Supplies.
Creates an connection for multiple Light strips and Poser Supplies.
Pack of 10 End Caps.

45g Tube of Sealant.
3.0” Length 0.3” Length 6" / 12" / 24" Length
$4.50
$8.10
$8.10
Length Price
6" $4.50
12" $7.20
24" $8.10
Item Price
2-WAY $8.10
3-WAY $9.90
5-WAY $12.15
$5.40 / $8.10
BACK to TOP

CUSTOM LENGTHS AVAILABLE FOR EASE OF INSTALLATION
Made in the USA Assembled in the USA
Custom Finished LED Tape Light
• Cut LED tape light to specified lengths
• Choose from a wide variety of single-color and color-changing options
• Lead wire is cut to specified length and soldered to the end of the tape light
Custom Cut CHROMAPATH™ Aluminum Channels
• Cut CHROMAPATH Aluminum Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Each channel includes:
        2 optional end-to-end connector plugs to connect to another CHROMAPATH Channel for runs longer than 4 feet.
        2 mounting clips with each SQUARE, 45, and DUO channel.
        SLIM channels don’t require mounting clips. SLIM Channel Mounting Tape is sold separately.
Fully Loaded CHROMAPATH Fixtures with LED Tape Light
• Create a customized, blog-low profile light fixture to specified length and color temperature by adding your choice of LED
  tape light to your preferred CHROMAPATH Aluminum Channel
• Cut CHROMAPATH Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Lead wire is cut to specified length and soldered to the end of the tape light within the fixture
• The fixture is completed with a CHROMAPATH Cover and End Caps
• SQUARE, 45 DEGREE, and DUO channel styles include 2 mounting clips. SLIM channels don’t require mounting clips.
  SLIM Channel Mounting Tape is sold separately.
CONTACT US FOR QUOTE: 440-715-5539 / ILLUMENATE@ME.COM
BACK to TOP

CLICK IMAGE for LARGER VIEW
CHROMAPATH™ Aluminum Channels
For enclosing strip light in a protective and lightweight enclosure. Choose one of the four styles with a Clear or Frosted lens to create a customized lighting fixture with a professional finished look. Channels and lenses are cuttable and can be mounted end-to-end.
• New wider track fits all CLICKTIGHT connectors to eliminate the use of soldering, and maximizes beam angle.

• New mounting clips make installation easy. Simply mount the clips to a desired surface and snap in the Aluminum Channel.
• 48” channel length accommodates strip light cut point of all densities for flawless lighting throughout the full enclosure.
Click Button for PDF Instructions Instructions
DI-CPCHA-SQ48
DI-CPCHA-SQ96
DI-CPCHA-4548
DI-CPCHA-4596
DI-CPCHA-SL48
DI-CPCHA-SL96
DI-CPCHC-FR48
DI-CPCHC-CL48
DI-CPCHC-FR96
DI-CPCHC-CL96
DI-1600-B DI-CPCHA-SQ96-B DI-1601-B DI-CPCHA-4596-B DI-1603 DI-CPCHA-SL96 DI-1610 / DI1611
SQUARE
Aluminum Channel
Square Aluminum Channel
45°
Aluminum Channel
45 Aluminum Channel
DUO
Aluminum Channel
Duo Aluminum Channel

96" CHANNELS, COVERS and CHANNEL KITS REQUIRE a SHIPPING QUOTE PROVIDED by DIODE LED
CHROMAPATH Channels Available in 48" and 96" Lengths
DI-1660-B Dimensions DI-1661-B Dimensions DI-1603-B Dimensions 48" Frosted Lens
48" Clear Lens
96" Frosted Lens
96" Clear Lens
BACK to TOP

CLICK IMAGE for COMPLETE SELECTION and DETAILS
POWER SUPPLIES and CONTROLS
Plug-In Adapters Hard-Wired
Non-Dimmable Drivers		 Hard-Wired
Dimmable Drivers		 12V and 24V
DRIVER / DIMMER		 REIGN
In-Wall Controls		 In-Line Controls
Plug-In Adapters Hard-Wired Non-Dimmable Drivers Hard-Wired Dimmable Drivers Hard-Wired Dimmable Drivers In-Wall Controls In-Line Controls
Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch
SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch
