LTF Technologies offers a wide range of LED Drivers (Power Supplies) to match your specific application.
UNIDRIVER
HIGH PERFORMANCE DRIVERS 		SI SERIES
PROGRAMMABLE DRIVERS		 LITESTREAM D
96W SMART DRIVERS
DIM - WARM LED BULBS BUILDER LED BULBS DIM - WARM LED TAPE LIGHT

CLICK IMAGE for LARGER VIEW

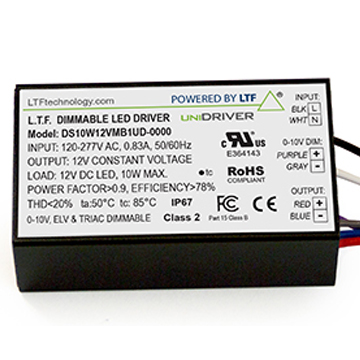

UNIDRIVER HIGH PERFORMANCE DRIVERS
UniDriver® LED drivers simplify selection for the lighting industry. Our drivers offer True-Tri-Mode dimming, universal input,
Title 24 compliant flicker-free operation,and a five-year warranty.
Unidriver High Performance LED Drivers • Universal input voltage: 100V – 277V AC, 50/60Hz
• Smooth, 100% – 0.1% True-Tri-Mode Dimming at all
input voltages: ELV, Triac, 0-10V
• 100mA – 5000mA constant current options
• 12, 24, 36 and 48V constant voltage options
• Title 24 compliant flicker-free operation and dimming
• UL listed indoor and outdoor models
• Auto-reset; short circuit, overload and thermal protection
• Efficiency >85%, power factor >95%
• Five year warranty
ITEM CLICK IMAGE
for LARGER VIEW		 WATTAGE INPUT VOLTAGE
CLICK for
FULL SPECS		 OUTPUT
CURRENT RANGE 		OUTPUT
VOLTAGE 		PRICE
DS12WUD DS15WUD 12W 100V - 277V AC 50/60Hz

DS12UD Spec		 250-1000 mA 12V - 48V DC $33.00

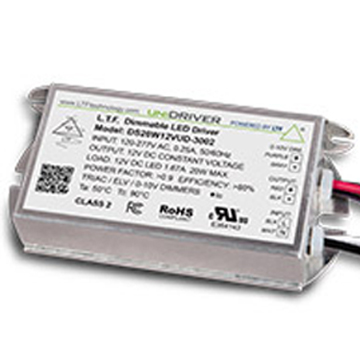

DS20WUD DS15WUD 20W 100V - 277V AC 50/60Hz

DS20UD Specs		 300-1600 mA 9V - 50V DC $40.50

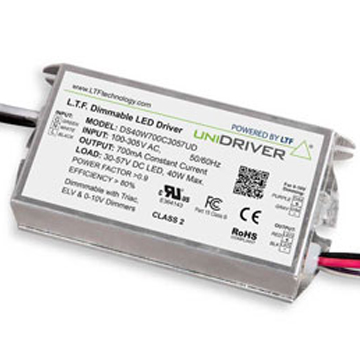

DS40WUD DS40WUD 40W 100V - 277V AC 50/60Hz

DS40UD Specs		 350-3300 mA 12V - 57V DC $51.50

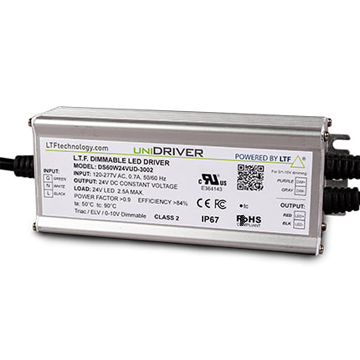

DS60WUD DS60WUD 60W 100V - 277V AC 50/60Hz

DS50UD Specs		 350-5000 mA 12V - 71V DC $69.00

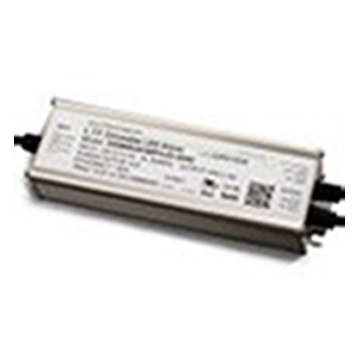

DS96WUD DS96WUD 96W 100V - 277V AC 50/60Hz

DS96UD Specs		 350-5500 mA 12V - 86V DC $98.00

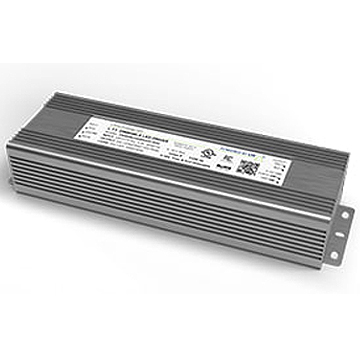

DS200WUD DS200WUD 200W 100V - 277V AC 50/60Hz

DS200UD Specs		 700-8000 mA 9V - 133V DC $205.00
DS300WUD DS200WUD 300W 100V - 277V AC 50/60Hz

DS300UD Specs		 700-12500 mA 12V  - 143V DC $258.00
BACK to TOP

CLICK IMAGE for LARGER VIEW

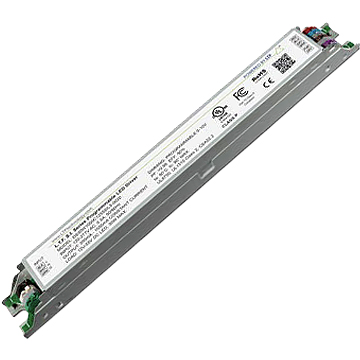

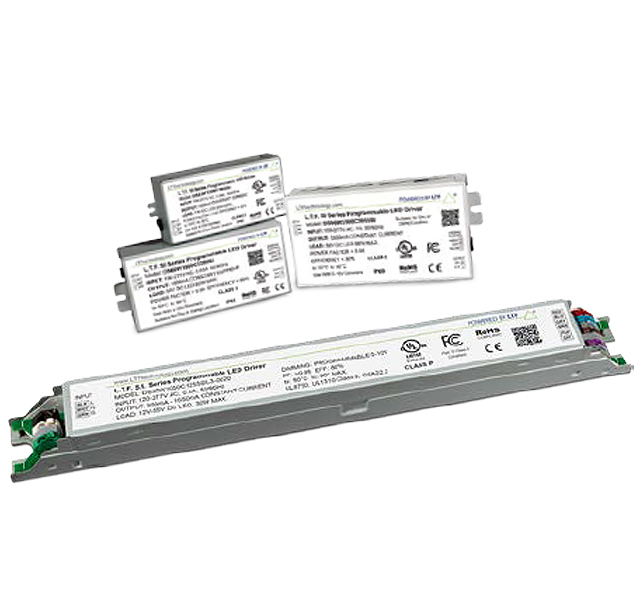

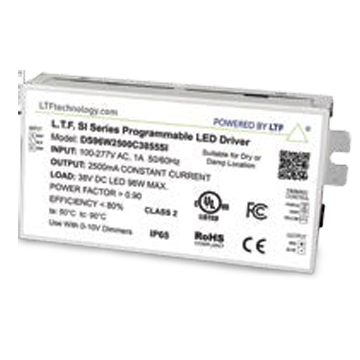

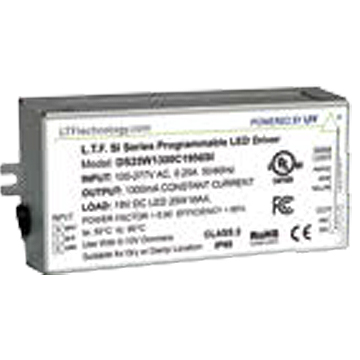

SI SERIES PROGRAMMABLE DRIVERS
LTF® Smart Interface Programmable LED drivers are high-performance power supplies, providing smooth dimming for virtually
any LED application — an ideal solution for enhanced flexibility and control of architectural lighting.
Available 4th Quarter 2023
SI Series Programmable Drivers

• Deep 0-10V dimming: 1% or standard 10%
• Smooth, 100% – 0.1% True-Tri-Mode Dimming at all
input voltages: ELV, Triac, 0-10V
• Over temperature protection (OTP) supports thermal
feedback, providing extra protection for LED loads
• Constant lumen output
• Constant Current
• Rated lifetime of 50,000 hours
• Metal enclosure is NEMA 1 compliant for indoor locations
• In-rush current protection – AC power line: line to line 6
Kv/0.5KA 8/20μs, line to ground 6 KV/0.5KA 8/20μs
• Five year warranty
ITEM CLICK IMAGE
for LARGER VIEW		 WATTAGE INPUT VOLTAGE
 OUTPUT
CURRENT
RANGE 		LOAD OUTPUT
VOLTAGE 		IP
RATING		 PRICE
LDS40W1500
C2756SI		 LDS40W1500 C2756SI 40W 120-277V AC 0.4A
50/60Hz

 1500mA 27V DCLED 12V - 48V DC IP65
LDS50W1050
CSI		 LDS50W1050 CSI LDS50W1400 CSI LDS50W1500 CSI 50W 120-277V AC 0.5A
50/60Hz		 28V - 48V
DC LED		 27V DC LED 9V - 50V DC IP65
LDS50W1400
CSI		 400mA -
050mA		 12V - 55V DC LED 12V - 57V DC IP20
LDS50W1500
CSI		 400mA -
1400mA		 12V - 56V DC LED 12V - 71V DC IP65

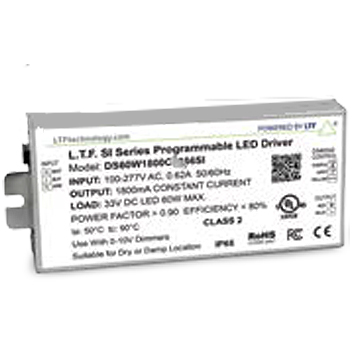

LDS60W1800
C3356SI		 LDS60W1800 C3356SI 60W 120-277V AC 0.62A
50/60Hz		 1800mA 12V - 56V DC LED 12V - 86V DC IP65
LDS100W1400
CSI 		LDS200W5600 CSI LDS200W2800 CSI LDS200W5600 CSI 100W 120-277V AC 0.62A
50/60Hz		 200mA -
1400mA		 36V–200V DC LED 9V - 133V DC IP65
LDS100W3300
CSI		 600mA -
5600mA		 350mA - 3500mA 12V  - 143V DC IP20
LDS200W5600
CSI		 200W 120-277V AC 2.0A
50/60Hz		 600mA -
5600mA		 12V - 55V DC LED 12V - 55V DC LED IP67
LDS200W2800
CSI		 300mA -
2800mA
LDS200W5600
CSI		 200mA -
1400mA

BACK to TOP

CLICK IMAGE for LARGER VIEW
LITESTREAM D 96W SMART DRIVERS
LTF® Smart Interface Programmable LED drivers are high-performance power supplies, providing smooth dimming for virtually any LED application — an ideal solution for enhanced flexibility and control of architectural lighting.
Available 4th Quarter 2023
LITESTREAM D 96W Smart Drivers

• WiFi, Bluetooth® mesh connectivity
• Universal Input: 120-277V AC 50/60Hz
• Transform 12V, 24V constant voltage LED strips into
connected Io / Smart devices
• Constant current models for single and dual channel
COB LEDs
• Single channel for single CCT or dim-to-warm LEDs
• Dual channel for CCT tuning
• IP67-rated aluminum case suitable for outdoor use
• Residential and commercial, new or retrofit installations
• Five year warranty
ITEM CLICK IMAGE
for LARGER
VIEW		 WATTAGE INPUT VOLTAGE
CLICK for
FULL SPECS		 CONSTANT
VOLTAGE
OUTPUT		 LOAD IP
RATING		 PRICE
LDS96W12VNDBT1REO LDS96W12VNDBT1REO LDS96W24VNDBT1REO LDS96W12VNDBT2REO LDS96W24VNDBT2REO 96W 100V - 277V AC 50/60HzLitestream D 96W Smart Drivers Specs 12V 12V DC Single Channel 12V DC LED Strip IP67

$229.00
LDS96W24VNDBT1REO 24V Single Channel 24V DC LED Strip
LDS96W12VNDBT2REO 12V Dual Channel 12V DC LED Strip
LDS96W24VNDBT2REO 24V Dual Channel 24V DC LED Strip
BACK to TOP
