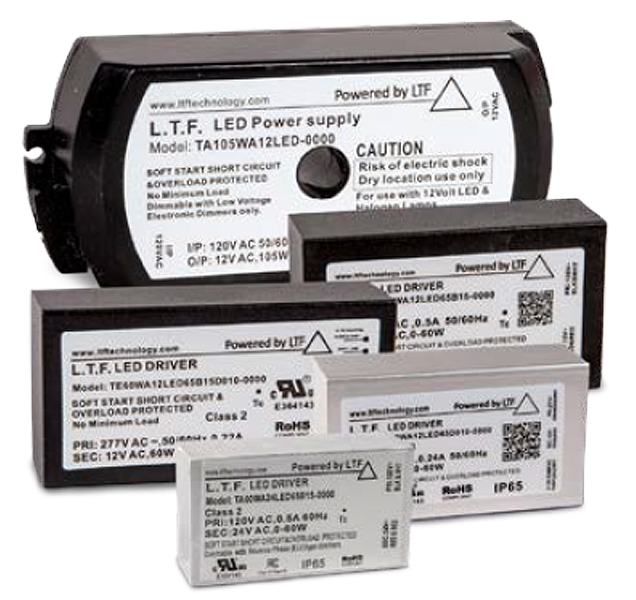

LTF® provides the most complete selection of electronic transformers in the lighting industry, offering no-load technology that
enables halogen, LED and incandescent load compatibility for low voltage lighting systems and fixtures
• Advanced no minimum load technology is rated for LED strips (DC)/bulbs (AC), halogen, incandescent light sources
• ELV dimmable; optional 0-10V dimming
• ETL and UL Recognized
• UL Listed indoor and outdoor models
• Soft start, auto reset; thermal and short circuit protection
• Efficient, high power factor
• Low profile, small form factor; B5 form factor (60W) only
67.5mm x 33mm x 21mm - Contact Us for Dimensions on Other Transformers
LiteStream™ M Smart Transformers allow users to create and control ambiance from a smartphone, with secure WiFi or
Bluetooth® multi-zone control that works with any new or existing low voltage landscape lighting. Create layers of
illumination from the front yard to the back yard by using up to four lighting zones that can be controlled independently,
or as one. Get creative! Only LiteStream M offers this much flexibility.
• WiFi or Bluetooth® four-zone control
• High performance, fully dimmable transformers work
with halogen and DC LED loads
• Highly efficient toroidal transformer core offers great
voltage regulation, cooler temperature and no noise
• Isolated output power per NEC, UL safety requirements

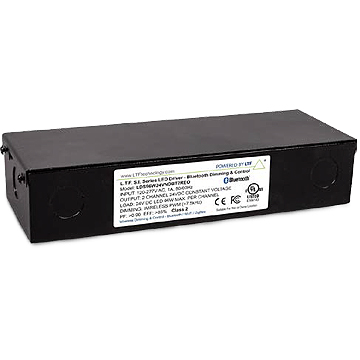

LTF® Smart Interface Programmable LED drivers are high-performance power supplies, providing smooth dimming for virtually any LED application — an ideal solution for enhanced flexibility and control of architectural lighting.
Available 4th Quarter 2023
• WiFi, Bluetooth® mesh connectivity
• Universal Input: 120-277V AC 50/60Hz
• Transform 12V, 24V constant voltage LED strips into
connected Io / Smart devices
• Constant current models for single and dual channel
COB LEDs
• Single channel for single CCT or dim-to-warm LEDs
• Dual channel for CCT tuning
• IP67-rated aluminum case suitable for outdoor use
• Residential and commercial, new or retrofit installations
