LED Spacing: 0.65 in. between centers - 4" Cut Points
Working Voltage: 24V DC
Lifespan: 50,000+ hours
LEDs Per Foot : 18
Lumens Per Foot: 275
IP Rating: Indoor / Damp IP20; WET - Outdoor IP65
UV/IR Radiation: None
Connectors: 16.4 ft. spools come with 3 foot bare lead wires on one end and a 12 inch white, female DC plug on the other end; 100 ft. spools come with 3 foot bare lead wires on both ends

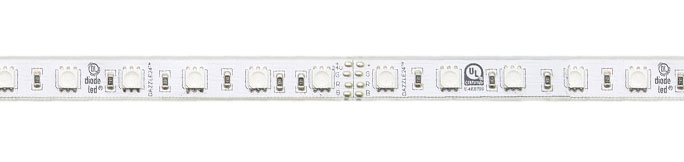

DAZZLE 24 24V COLOR Max. CUT POINTS: 4"
I
ITEM
LENGTH
OUTPUT
VOLTAGE
LUMENS
/ FT
COLOR
TEMP
CRI*
POWER
CONS / FT
LEDS
/ FT
PRICE
DI-24V-RGBW4-0016
16.4 ft. / 5m
24VDC
275
RGBW
90+
4.32W
18
$504.90
DI-24V-RGBW4-0016 (WET)
16.4 ft. / 5m
$599.40
* COLOR RENDERING INDEX
RGBW CONNECTORS
RGBW CLICKTIGHT CONNECTORS
The CLICKTIGHT™ Strip Light Connector performs as a simple, secure connection for the whole line of indoor Diode LED Strip Lights. This connector accessory eliminates the need to solder, and is more secure than the standard Strip Light Connector. It features a special strip light locking connector at one end and optional opposite ends for a DC Plug, Spliced leads, or another locking connector for strip-to-strip connections.
• Cut LED tape light to specified lengths
• Choose from a wide variety of single-color and color-changing options
• Lead wire is cut to specified length and soldered to the end of the tape light
Custom Cut CHROMAPATH™ Aluminum Channels
• Cut CHROMAPATH Aluminum Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Each channel includes:
2 optional end-to-end connector plugs to connect to another CHROMAPATH Channel for runs longer than 4 feet.
2 mounting clips with each SQUARE, 45, and DUO channel.
SLIM channels don’t require mounting clips. SLIM Channel Mounting Tape is sold separately.
Fully Loaded CHROMAPATH Fixtures with LED Tape Light
• Create a customized, low profile light fixture to specified length and color temperature by adding your choice of LED
tape light to your preferred CHROMAPATH Aluminum Channel
• Cut CHROMAPATH Channels and Clear or Frosted Covers to specified lengths in increments of 1/8 in.
• Lead wire is cut to specified length and soldered to the end of the tape light within the fixture
• The fixture is completed with a CHROMAPATH Cover and End Caps
• SQUARE, 45 DEGREE, and DUO channel styles include 2 mounting clips. SLIM channels don’t require mounting clips.
SLIM Channel Mounting Tape is sold separately.
For enclosing strip light in a protective and lightweight enclosure. Choose one of the four styles with a Clear or Frosted lens to create a customized lighting fixture with a professional finished look. Channels and lenses are cuttable and can be mounted end-to-end.
• New wider track fits all CLICKTIGHT connectors to eliminate the use of soldering, and maximizes beam angle.
Channels and End Caps Available in
Glossy White (W), Aluminum
and Satin Black (B)
• New mounting clips make installation easy. Simply mount the clips to a desired surface and snap in the Aluminum Channel.
• 48” channel length accommodates strip light cut point
of all densities for flawless lighting throughout the full enclosure.
Click Button for PDF Instructions
Click BUTTON for CHROMAPATH SPECIFICATIONS
DI-CPCHA-SQ48
DI-CPCHA-SQ7296
DI-CPCHA-4548
DI-CPCHA-4596
DI-CPCHA-DU48
96" NOT Available
DI-CPCHA-SL48
DI-CPCHA-SL72
DI-CPCHA-SL96
96" CHANNELS, COVERS and CHANNEL KITS REQUIRE a SHIPPING QUOTE PROVIDED by DIODE LED
SQUARE
Aluminum Channel
45°
Aluminum Channel
DUO
Aluminum Channel
SLIM
Aluminum Channel
CHROMAPATH Channels Available in 48" and 96" Lengths
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Includes - 4 Mounting Clips / 2 End-to-End Connectors for Seamless In-Line Installation
Aluminum Channel Only.
Mounts with DI-1633 or DI-1634 (3M Double Sided Tape)
FINISH KEY: Aluminum ( ) / Satin Black (B) / Glossy White (W)
LENGTH KEY: 48 - 48" / 72 - 72" / 96 - 96"
DI-CPCHA-SQ48 / 96
$33.30 / $82.35
DI-CPCHA-SQ48B / 96B
$42.75 /$95.85
DI-CPCHA-SQ48W / 96W
$42.75 /$95.85
8 / 96
$41.85 / $99.00
DI-CPCHA-4548B / 96B
$49.95 / $117.90
DI-CPCHA-SQ48W / 96W
$49.95 / $117.90
DI-CPCHA-DU48
N/A
DI-CPCHA-DU48B
N/A
DI-CPCHA-DU48W
N/A
DI-CPCHA-SL48 / 72 / 96
$18,00 / $36.00 / $47.70
DI-CPCHA-SL48B / 72B / 96B
$24.30 / $43.20 / $56.70
DI-CPCHA-SL48W / 72W / 96W
$24.30 / $43.20 / $56.70
CHROMAPATH™ END CAPS
DI-CPEC-SQ
DI-CPEC-45
DI-CPEC-DU
DI-CPEC-SL
FINISH KEY: Aluminum ( ) / Satin Black (B) / Glossy White (W)
SQUARE End Cap
Set
of 1 Open / 1 Closed
45° End Cap
Set
of 1 Open / 1 Closed
DUO End Cap
Set
of 1 Open / 1 Closed
SLIM End Cap
Set
of 1 Open / 1 Closed
DI-CPEC-SQ-1
$2.70
DI-CPEC-SQB-1
$2.70
DI-CPEC-SQW-1
$2.70
DI-CPEC-45-1
$2.70
DI-CPEC-45B-1
$2.70
DI-CPEC-45W-1
$2.70
DI-CPEC-DU
N/A
DI-CPEC-DUB
N/A
DI-CPEC-DUW
N/A
DI-CPEC-SL
$1.80
DI-CPEC-SLB
$1.80
DI-CPEC-SLW
$1.80
PREMIUM DIFFUSION END CAPS
DI-CPEC-SQPD6
$2.70
DI-CPEC-SQPDB
$2.70
DI-CPEC-SQPDW
$2.70
DI-CPEC-45PD
$2.70
DI-CPEC-45PDB
$2.70
DI-CPEC-45PDW
$2.70
N/A
DI-CPEC-SLPD
$1.80
DI-CPEC-SLPDB
$1.80
DI-CPEC-SLPDW
$1.80
CHROMAPATH™ Aluminum Channel ACCESSORIES
For enclosing strip light in a protective and lightweight enclosure. Choose one of the four styles with a Clear or Frosted lens to create a customized lighting fixture with a professional finished look. Channels and lenses are cuttable and can be mounted end-to-end.
The ultimate in total diffusion for uninterrupted continuous LED light output. Please note there is an average warm shift in Kelvin of 75K and an average 24% decrease in delivered lumen.(Not for use with DUO Channel. Not for use with DAZZLE® RGBW or VALENT® LED Tape Light).
DI-1630-20
DI-1631-10
DI-1912
DI-CPCH-RC-BA
DI-CPCH-RC-BL
DI-CPCH-RC-WH
DI-CPCH-HNG
Mounting Clips
20 Pack NOT for SLIM
CHANNEL
End to End Connector
10 Pack NOT for SLIM
CHANNEL
Vertical Mounting Support for
SQUARE and 45°
Adjustable Angle Mounting Rotating Clips NOT for SLIM - 2 Clips and 2 Screws
Transform your Channel into a pendent fixture with
Hanging Hardware Kit NOT for SLIM CHANNEL
$18.45
$14.40
$9.00
$22.50 per Set
CLICK for SPECS
$40.95
DI-CPCH-UC-BA
DI-CPCH-UC-BL
DI-CPCH-UC-WH
DI-CPCH-MUC-BA
DI-CPCH-MUC-BL
DI-CPCH-MUC-WH
DI-CPCHC-FR48
DI-CPCHC-CL48
DI-CPCHC-FR72
DI-CPCHC-CL72
DI-CPCHC-FR96
DI-CPCHC-CL96
Premium Diffusion Cover
DI-CPCHC-PD48
DI-CPCHC-PD72
DI-CPCHC-PD96
DI-0775-S
DI-1633
DI-1633
Mounting U-Clips for SLIM - 2 Clips and 2 Screws, Brushed Aluminum, Satin Black or Glossy White
Magnetic Mounting U-Clips for SLIM - 2 Clips and 2 Screws, Brushed Aluminum, Satin Black or Glossy White
TAPEGUARD is the easiest way to provide a decorative protection of indoor LED tape light installations and create an attractive and finished look.
The low-Profile cover comes with an adhesive edging that adheres to clean, dry surfaces. TAPEGUARD is made of lightweight, polycarbonate plastic that is easy to install and maintain. The covers can be placed end to end or cut to size for the perfect finished look to linear LED tape installations.
• Choose CLEAR cover for maximum light output
Add a wipe-able protective lens to LED tape light for protection from:
• Dust
• Airborne Grease and Dirt
• Choose FROSTED COVER for subtle light diffusion
• Works with AVENUE 24, FLUID VIEW, BLAZE, DAZZLE 24 and K-RANGE 24
• Does not change the IP rating of the tape light
DI-TAPE-GRD-FR / DI-TAPE-GRD-CL
Shown with BLAZE
LED Tape Light
0.4" Wide x 0.15" Height
x 39.4" Length
Simply Cut to length, Peel edge backing and Apply to surface
CHROMAPATH Fixture Bundles include Channels, Covers, End Caps and Mounting Hardware. Create a custom LED FIxture with your Choice of up to 10 different Diode LED Tape selections. Tape light compatibility indicated by bundle.
Adapters Plug in to a Standard Electrical Socket. Any of Our Dimmable Light Fixtures Powered by a Plug-In Adapter, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Powered by a Hard-Wired Driver, Can Be Dimmed Using the REIGN 12V In-Wall Switch or the In-Line Dimmer Switch.
Hard-Wired Non-Dimmable Drivers Should be Hard-Wired to Household AC Power by a Licensed Electrician. Any of Our Dimmable Light Fixtures Can be Powered by Our Hard-Wired Dimmable Drivers and a 120V Magnetic Low Voltage Dimmer Switch
SWITCHEX combines an LED dimmer switch and LED power supply into a single integrated unit that fits in a single gang box.
REIGN 12V / 24V In-Wall Switches Allow for Full 0-100% Dimming.
Our 12V / 24V In-line Controls All Feature DC Plugs That Make Them Compatible with Any of Our DC Accessories. Any of Our Dimmable Light Fixtures Powered by Plug-In Adapters or Standard Hard-Wired Drivers Can Be Dimmed Using the In-Line Dimmer Switch
