LED Lighting Solutions for Home and Business
'The Application of LED Solid State Technology for Function, Design and Efficiency'
ASSEMBLED, BUILT or MODIFIED

in the USA
KLUS Design KOZMA Extrusion
ARCHITECTURAL LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure
Klus LED Tape Lightd, LED Strips
Kozma

Narrow line of light

Profile flush with the ceiling or wall surface
Components de luminous invisible Invisible aluminum components
ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or less.
Application

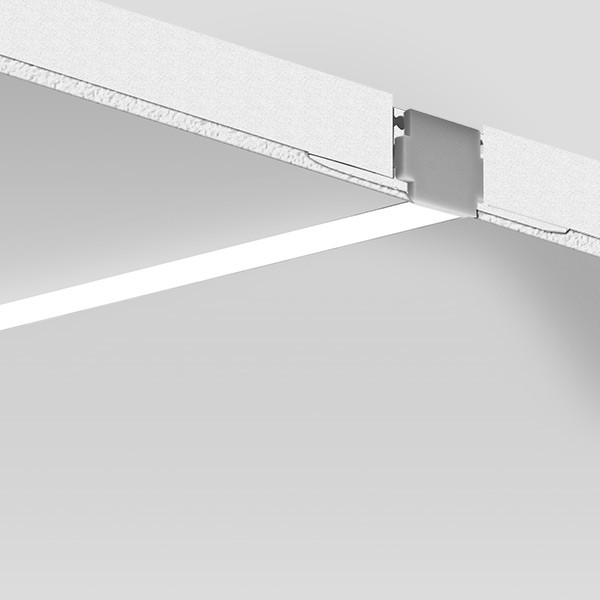

- for a fixture with the line-of-light effect, flush with the ceiling surface, without visible aluminum elements
Assembly

- for mounting in a cardboard-gypsum board using fixing glues, then meshed and finished with plaster
- The PROTECTIVE INSERT TECH-22 ensures that the profile slot remains wide enough for the snap-in cover. Its use is NECESSARY during mounting and finishing works.
Additional information

KOZMA extrusion can be applied indoor for drywall ceilings. It allows for creation of interesting compositions of narrow lines of light in the surfaces of walls and ceilings. Covering aluminum elements with plaster leaves only an elegant line of cover. mounting glue (producer suggests GS 20 CEKOL) in a way that its wings adhere tightly to the surface of the ceiling. Then the net for covering with plaster is pasted on the wings and the plaster is applied and grinded. The base edge of the extrusion must remain untouched. The layer of paint is added next and the working cover is removed. The LED are pasted next and the final cover inserted.
Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.
KOZMA
EXTRUSIONS		 COVERS
/ LENSES		 END CAPS /
ACCESSORIES
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

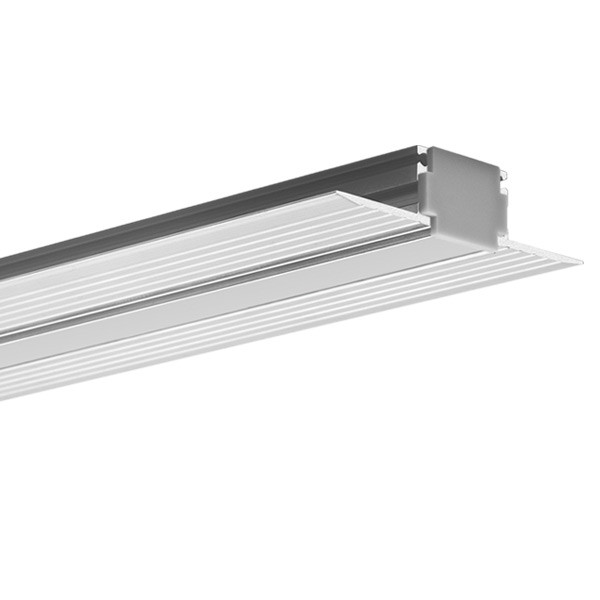

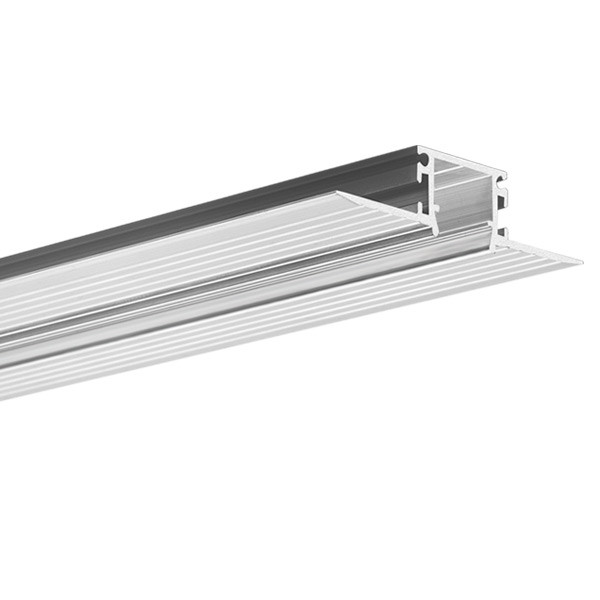

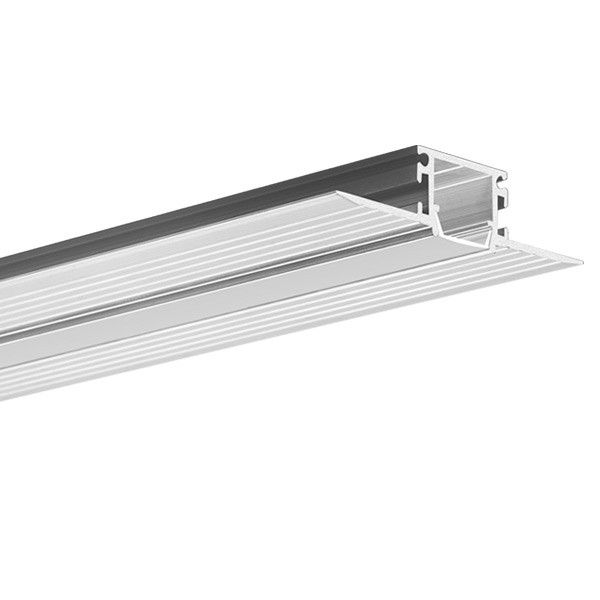

KOZMA Extrusion
18040NA_1 18040NA_2 18040NA_1 18040NA_2 18040NA_1 18040NA_2 18040NA_1 18040NA_2
ITEM DESCRIPTION PRICE
18040NA_1 39.4" / 1M Non Anodized Extrusion $40.00
18040NA_2 79.75" / 2M Non Anodized Extrusion $80.00
Download for Full Specifications, Dimensions and Instructions
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart KOZMA Specifications KOZMA How To

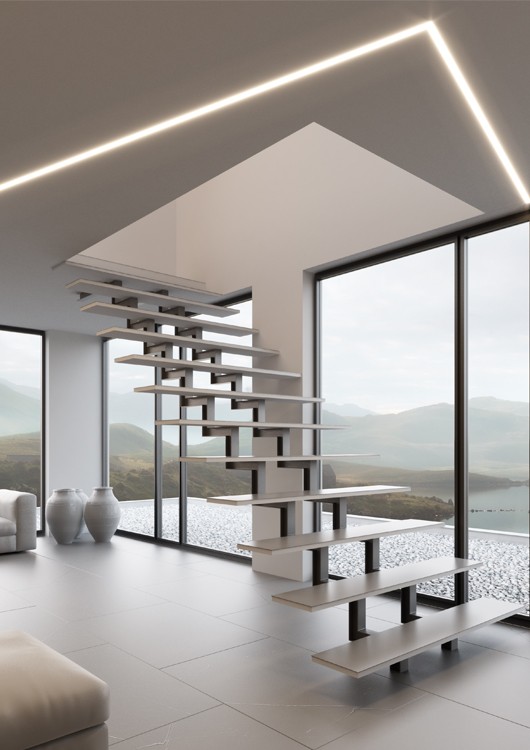

EXAMPLE
Kozma
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
1370 1369 17037 17076 17040
1370 1369 17037 17076 17040
HS Cover
Clear		 HS Cover
Frosted		 LIGER Cover
Frosted		 PDC LUK
Cover		 LIGER Cover
Black
ITEM DESCRIPTION PRICE
1370_1 39.4" / 1M HS Cover Clear $11.90
1370_2 78.75" / 2M HS Cover Clear $23.80
1369_1 39.4" / 1M HS Cover Frosted $11.90
1369_2 78.75" / 2M HS Cover Frosted $23.80
17037_1 39.4" / 1M LIGER Cover Frosted $13.80
17037_2 78.75" / 2M LIGER Cover Frosted $27.60
17076_1 39.4" / 1M PDC LUK Cover $20.20
17076_2 78.75" / 2M PDC LUK Cover $40.40
17040_1 39.4" / 1M LIGER Cover Black $20.50
17040_2 78.75" / 2M LIGER Cover Black; $41.00
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24217 00802L 42729 42725 42724 42723 42726
2242174034 00802 42729 42720 42717 42718 42718
KOZMA
End Cap		 8,8x1,2 Gland ZM-120
Connector		 ZM-135
Connector		 ZM-180
Connector		 ZM-90
Connector		 ZM-90-PION
Connector
ITEM DESCRIPTION PRICE

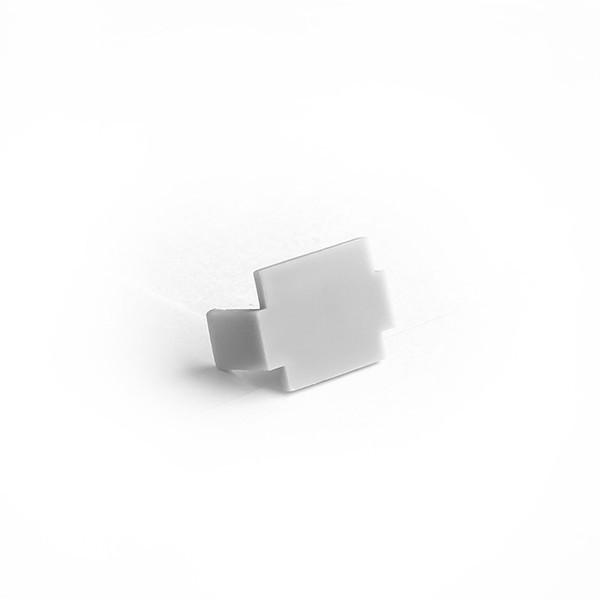

24217 KOZMA End Cap $4.00
00802L 8,8x1,2 Gland $1.40
42729 ZM-NA-120 Connector $11.60
42725 ZM-NA-135 Connector $11.60
42724 ZM-NA-180 Connector for Non Anodized Extrusions $10.30
42723 ZM-NA-90 Connector for Non Anodized Extrusions $10.30
42726 ZM-NA-PION-90 Connector for Non Anodized Extrusions $10.30
