LED Lighting Solutions for Home and Business
'The Application of LED Solid State Technology for Function, Design and Efficiency'
ASSEMBLED, BUILT or MODIFIED

in the USA
KLUS Design NISA-KRA Extrusion
COVES / NICHES LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure
Klus LED Tape Lightd, LED Strips
Nisa-Kra

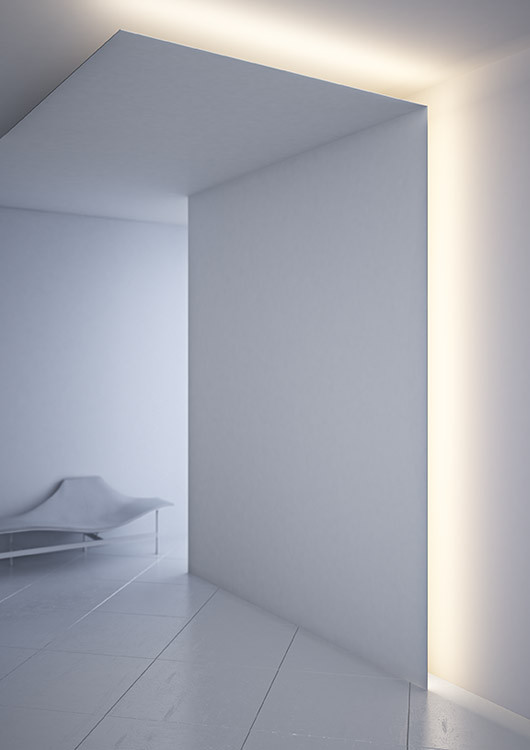

Illumination of niches with the effect of a thin edge of a suspended ceiling
Easy servicing
ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or lees
Application

- ambient lighting of architectural niches located a short distance from the wall
- the light is directed to the ceiling
Assembly

- using screws appropriately selected for the mounting surface
Additional information

- the light source is placed in the easily disassembled ONISA lighting fixture

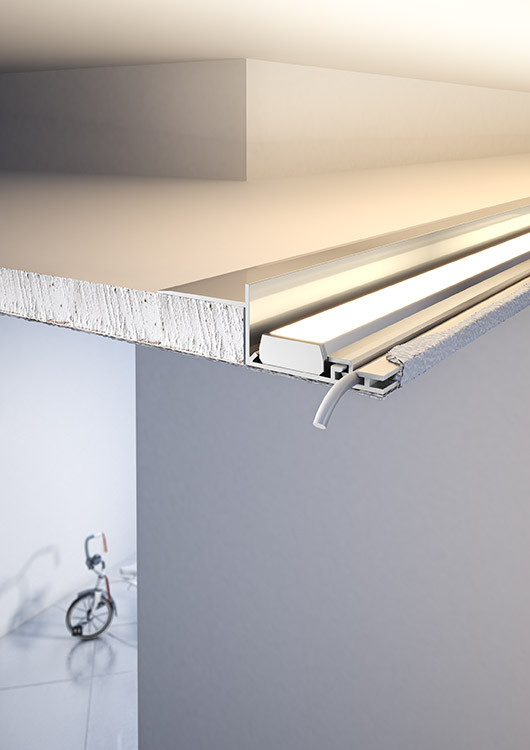

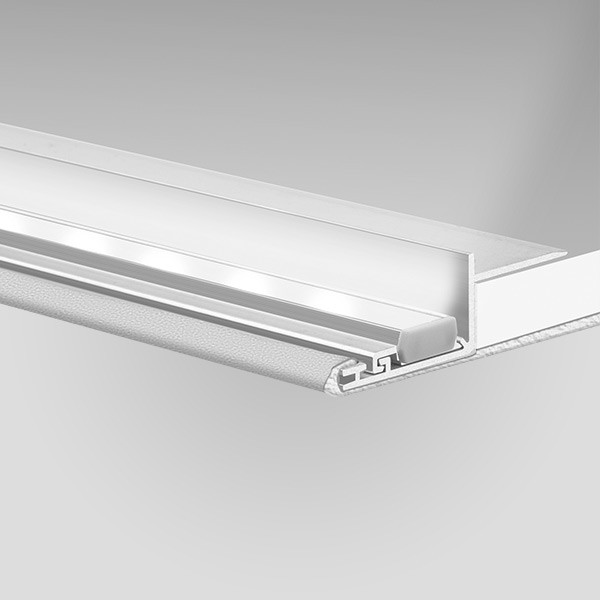

NISA-KRA is a set of two extrusions designed for recess illumination purposes. It consists of TENIKRA mounting strip and ONISA extrusion recessed in it. The complete set enables the parallel direction of light to the wall, facing up. TENIKRA strip is step-shaped, which makes possible drywall edge mounting. The lower edge of TENIKRA strip is an extension of the recess, and once sealed, forms a thin aesthetic edge.
ONISA extrusion holds a single 10.8 mm (0.42") max. wide LED. TENIKRA strip enables the extension of the drywall recess and serves as a horizontal fixing element for ONISA extrusion. TENIKRA mounting strip is drywall mounted using mounting screws. NOTE! Prior to mounting, the strip must be pre-drilled to avoid unwanted deflection. The manual provides all details of mounting methods and direction of screw mounting. Once mounted, seal the lower edge of the strip. Rigid mounting of ONISA extrusion can performed with a silicone cord (included in the set). Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.
NISA-KRA
EXTRUSIONS		 COVERS /
LENSES		 END CAPS /
ACCESSORIES
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote

CLICK IMAGE for LARGER VIEW

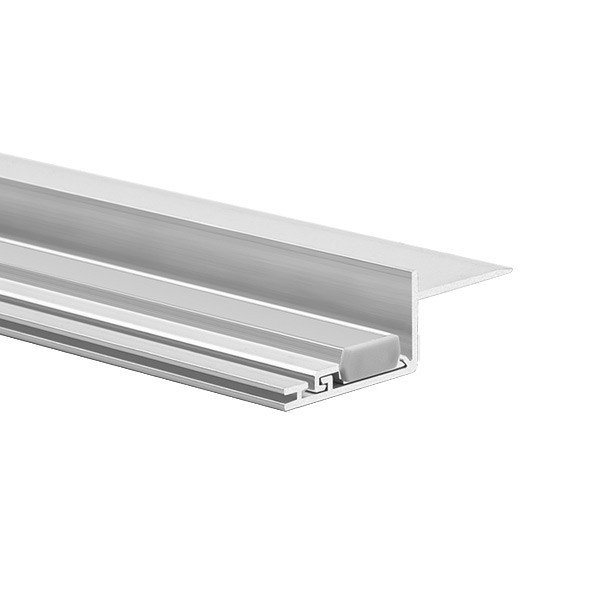

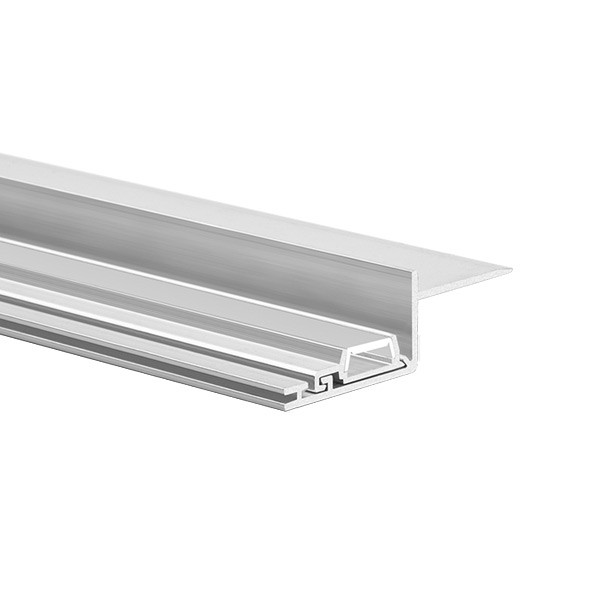

NISA-KRA Extrusion
18026NA_1 18026NA_2 18026NA_1 18026NA_2 18026NA_1 18026NA_2 18026NA_1 18026NA_2
ITEM DESCRIPTION PRICE
18026NA_1 39.4" / 1M Non -Anodized Extrusion $44.70
18026NA_2 79.75" / 2M Non-Anodized Extrusion

$89.40
Download for Full Specifications, Dimensions and Instructions
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart Nisa-KRA Specifications Nisa-Kra How To
EXAMPLE EXAMPLE
Nisa-Kra Nisa-Kra
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
1370 1369 17037
1370 1369 17037
HS Cover
Clear		 HS Cover
Frosted 		LIGER Cover
Frosted
ITEM DESCRIPTION PRICE
1370_1 39.4" / 1M HS Cover Clear $11.90
1370_2 78.75" / 2MHS Cover Clear $23.80
1369_1 39.4" / 1M HS Cover Frosted $11.90
1369_2 78.75" / 2M HS Cover Frosted $23.80
17037_1 39.4" / 1M LIGER Cover -Frosted $13.80
17037_2 78.75" / 2M LIGER Cover -Frosted $27.60
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24100 00802L
24100 00802
ONISA
End Cap		 8,8x1,2 Gland
ITEM DESCRIPTION PRICE
24100 ONISA End Cap $3.30
00802L 8,8x1,2 Gland $1.40

42725 42724 42723 42729 42726
42720 42717 42723 42729 42718
ZM-NA-135
Connector		 ZM-NA-180
Connector		 ZM-NA-90
Connector		 ZM-NA-120
Connector		 ZM-NA-PION-90
Connector
ITEM DESCRIPTION PRICE
42725 ZM-135 Non Anodized Connector $11.60
42724 ZM-180 Non Anodized Connector $10.30
42723 ZM-90 Non Anodized Connector $10.30
42729 ZM- Non Anodized-135 Connector $11.60
42726 ZM-PION- Non Anodized90 Connector $10.30
BACK to TOP
