KLUS Design PDS-NK Extrusion
UNIVERSAL LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure
Klus LED Tape Lightd, LED Strips

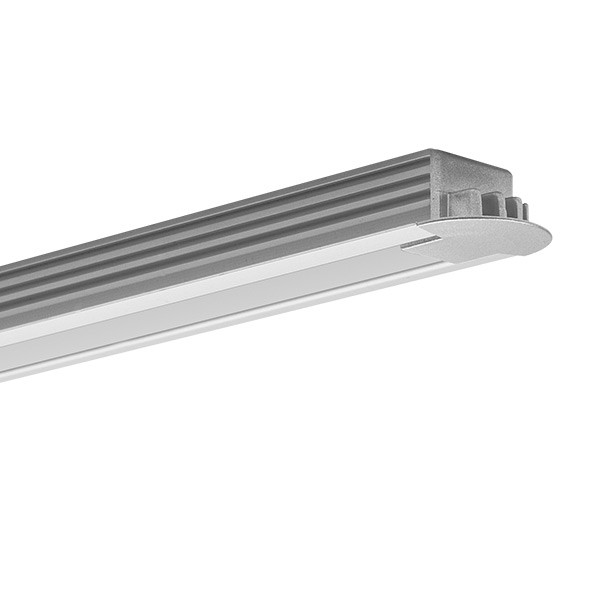

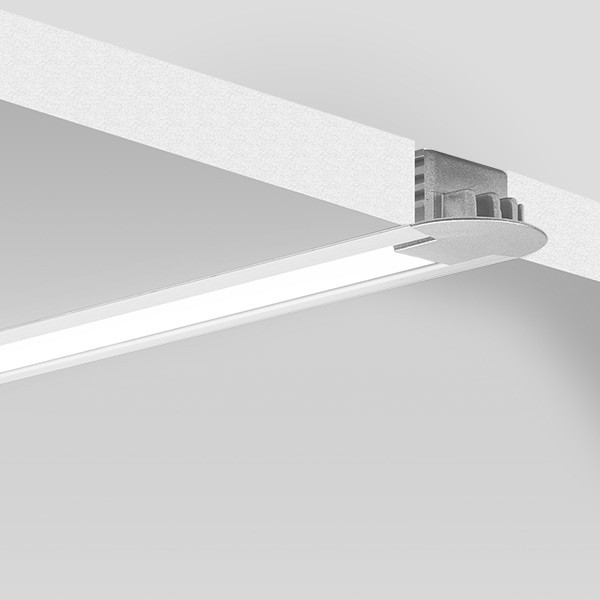

PDS4N-K
Small dimensions (just 6 mm; 0.23" high)
Recessed housing for flexible or hard LED strips that are 8-10mm wide (0.39")
Masking the channel edge

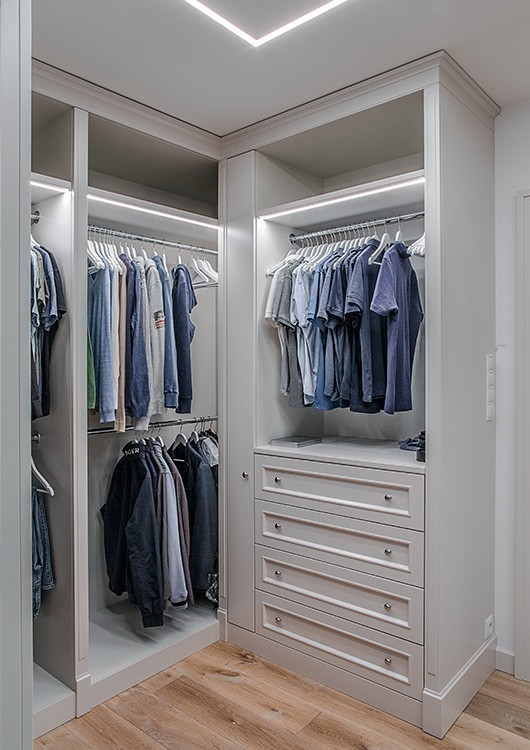

ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or less.
Easy assembly, lightweight
Easily release heat, environment friendly
Application

- construction of recessed lighting fixtures

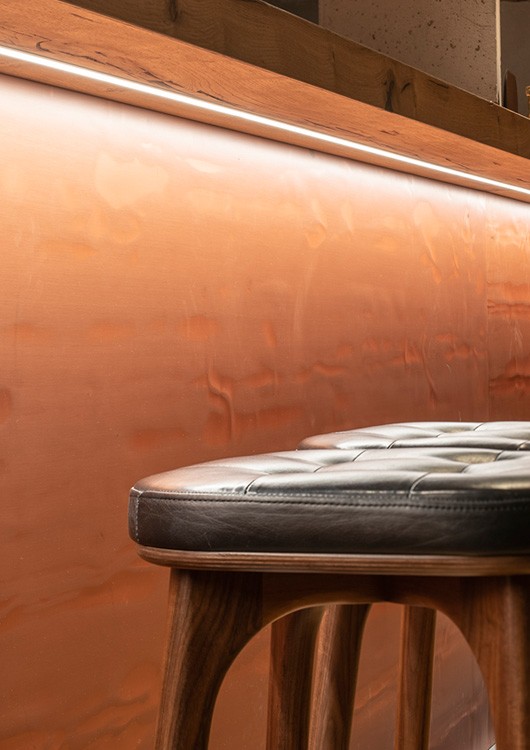

- furniture lighting
- indoor: grooves (profile can fit slim design and thin furniture pieces, wall surfaces, drywalls)
Assembly
- with mounting adhesive
- extrusion acts as the connector between the light source and the application area and provides a stylish and
finished look
Additional Information
- extrusion can be made waterproof ( IP 67 ) and be used as an outdoor lighting for elevations or architectural
elements of gardens.
- lighting or illumination of certain areas (stream of light may vary depending on the power of applied LEDs)
- maximizes the applications and uses available for LED light strips
- eliminates obstacles related to LED light strip mounting
• Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.
PDS4-NK
EXTRUSIONS		 COVERS /
LENSES 		END CAPS /
ACCESSORIES
KLUS Extrusions MiFor-70S ystem KLUS Accessories KLUS Fixtures KLUS Tape Light
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote
CLICK IMAGE for LARGER VIEW

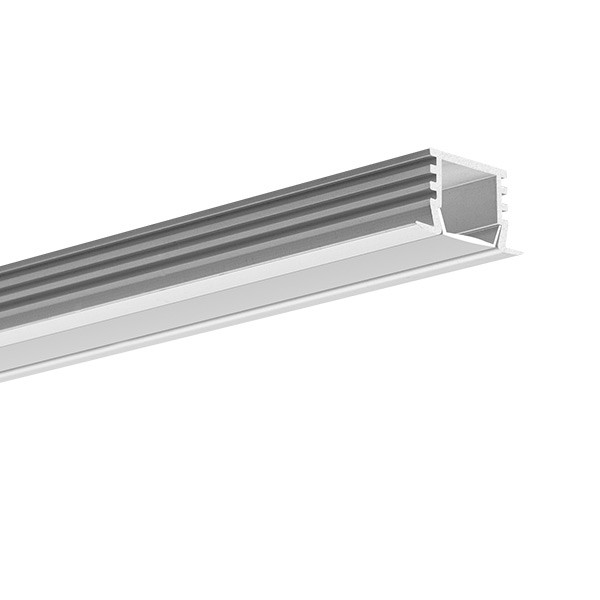

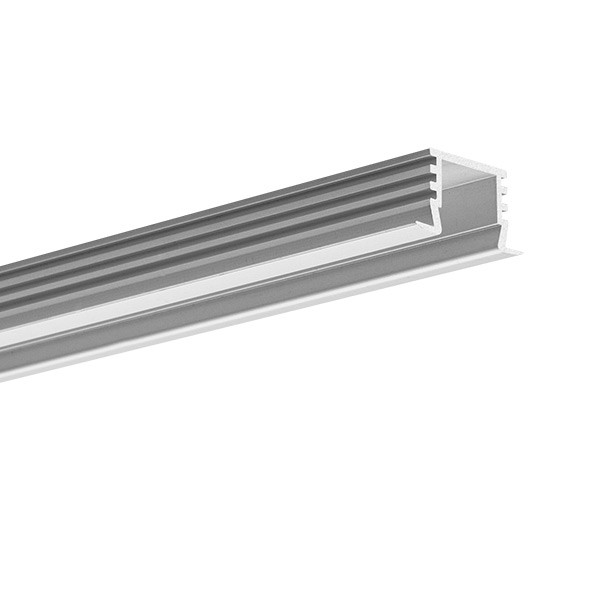

PDS4 -NK Extrusion
B3776ANODA_1 B3776ANODA_2 B3776ANODA_1 B3776ANODA_2 B3776ANODA_1 B3776ANODA_2 B3776ANODA_1 B3776ANODA_2
B3776K7_1 B3776K7_2 B3776K7_1 B3776K7_2

ITEM DESCRIPTION PRICE
B158ANODA_1 39.4" / 1M Silver-Anodized Extrusion $17.90
B158ANODA_2 78.75" / 2M Silver-Anodized Extrusion $35.80

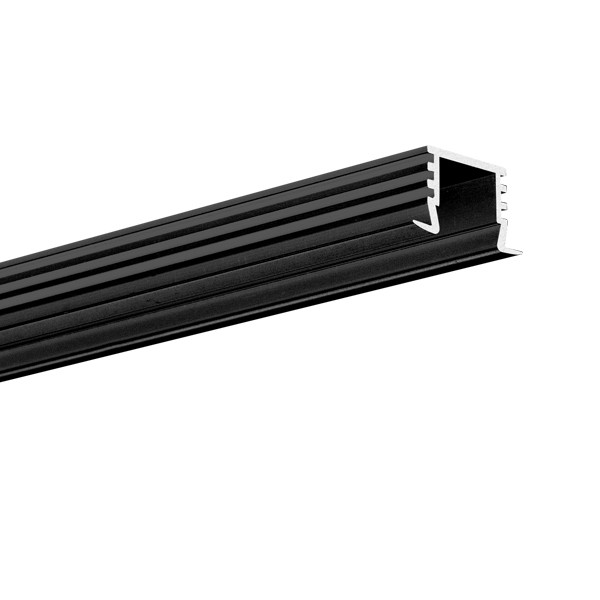

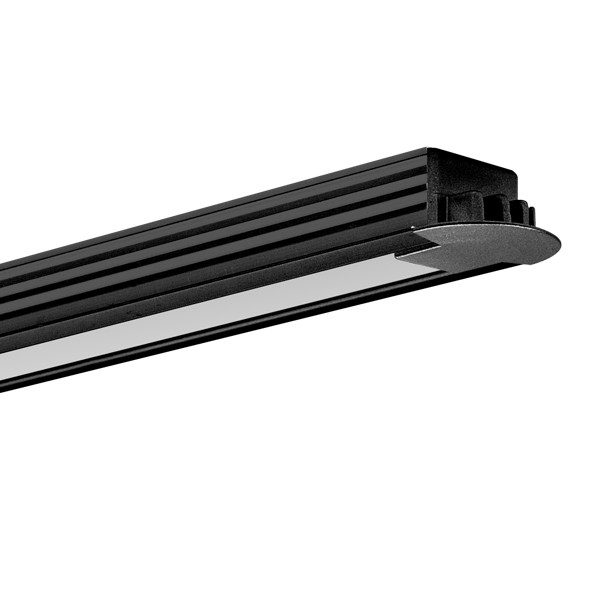

B3776K7_1 39.4" / 1M Black-Anodized Extrusion $24.10
B3776K7_2 78.75" / 2M Black-Anodized Extrusion $48.20
Download for Full Specifications, Dimensions and Instructions
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart PDS4-K Specifications PDS4-K How To
EXAMPLE EXAMPLE
PDS4-K PDS4-K
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
1370 1369 17072 17071 17037 17040
1370 1369 17072 17071 1717037031 17040
HS Cover
Clear		 HS Cover
Frosted 		KA-BIS Cover
Clear		 KA-BIS Cover
Frosted 		LIGER-22 Cover
Frosted 		LIGER-22 Cover
Black
ITEM DESCRIPTION PRICE
1369_1 39.4" / 1M HS Cover Frosted $11.90
1369_2 78.75" / 2M HS Cover Frosted $23.80
1370_1 39.4" / 1M HS Cover Clear $11.90
1370_2 78.75" / 2M HS Cover Clear $23.80
17072_1 39.4" / 1M KA-BIS Cover Clear $13.80
17072_2 78.75" / 2M A-BIS Cover Clear $27.60
17071_1 39.4" / 1M KA-BIS Cover Frosted $13.80
17071_2 78.75" / 2M A-BIS Cover Frosted $27.60
17037_1 39.4" / 1M LIGER Cover Frosted $13.80
17037_2 78.75" / 2M LIGER Cover Frosted $27.60
17040_1 39.4" / 1M LIGER Cover Black $20.50
17040_2 78.75" / 2M LIGER Cover Black $41.00
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
1447 24342 00032 24343 1438 00802L
1447 24067 00032 24082 1438 00802
PDS4-K
End Cap with Hole		 PDS4-K
End Cap Black		 MW-PDS4-K
End Cap with Hole		 PDS4-K

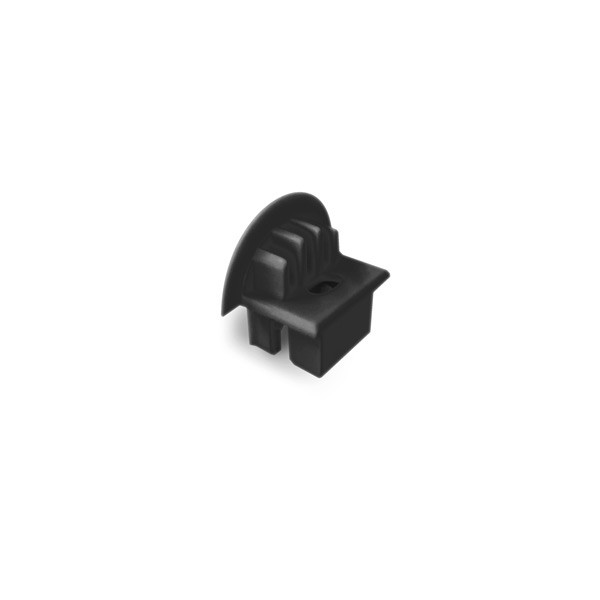

End Cap Black with Hole		 PDS4-K
End Cap		 8,8x1,2 Gland
ITEM DESCRIPTION PRICE
1447 PDS4-K End Cap with Hole $4.20

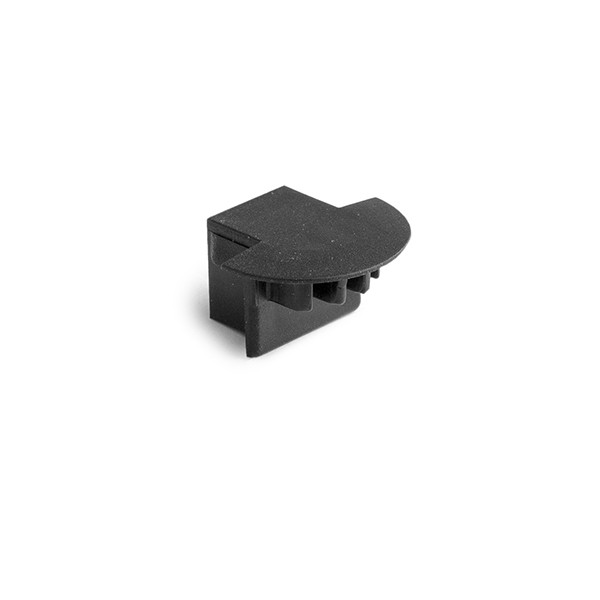

24342 PDS4-K End Cap Black $4.20

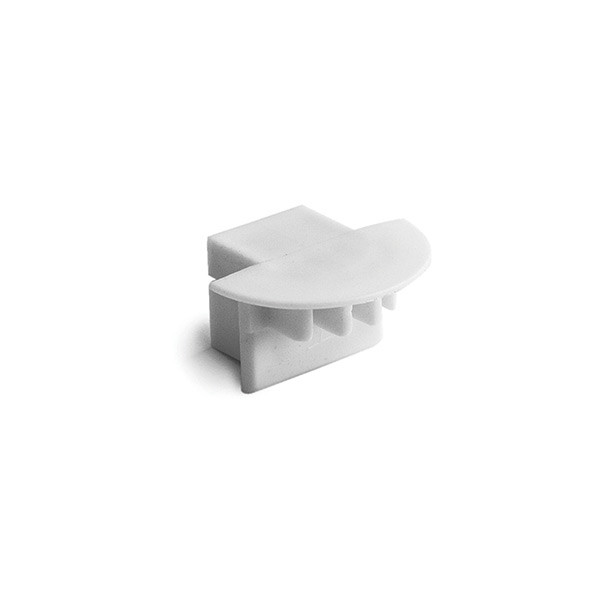

00032 MW-PDS4-K End Cap with Hole $4.20
24343 PDS4-K End Cap Black with Hole $4.20

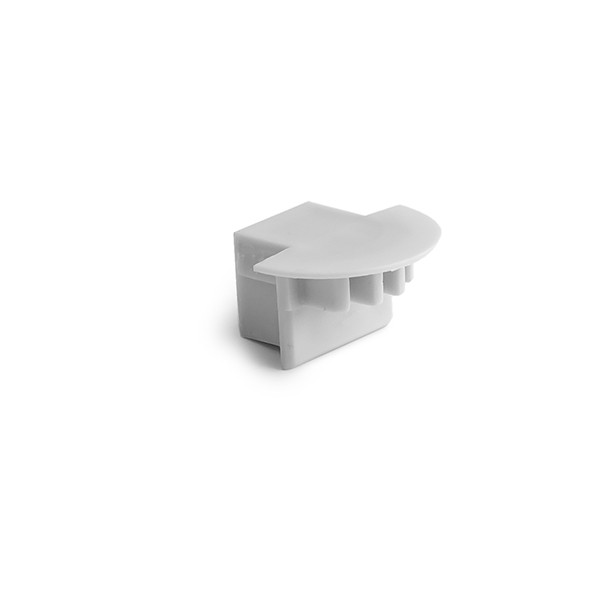

1438 PDS4-K End Cap $4.20
00802L 8,8x1,2 Gland $1.40
BACK to TOP
