LED Lighting Solutions for Home and Business
'The Application of LED Solid State Technology for Function, Design and Efficiency'
ASSEMBLED, BUILT or MODIFIED

in the USA
KLUS Design POR Extrusion
TRAFFIC AREAS LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 216-352-3685 EMAIL US
WE OFFER ALL KLUS ITEMS . CONTACT US For ITEMS NOT SHOWN. - 216-352-3685 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure
Klus LED Tape Lightd, LED Strips
Por
Fits a wide range of pipe handrail diameters

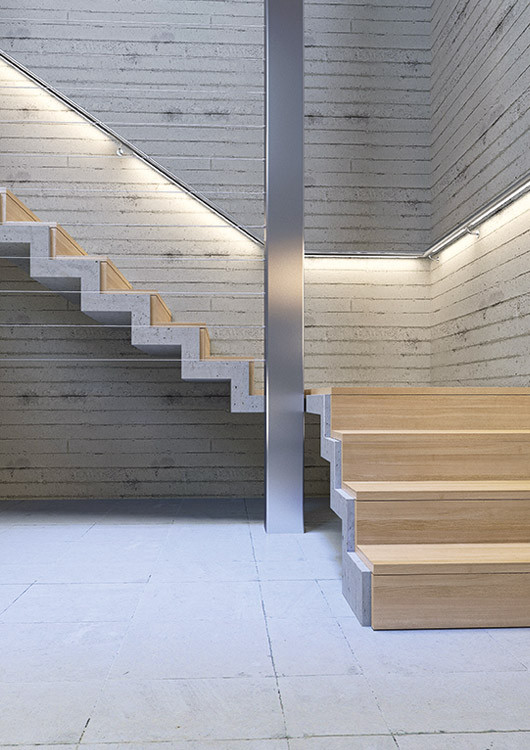

Backlighting embedded in the handrail of stairs

Easy assembly and disassembly with latches
ETL listed and approved for installation in all closet storage areas when factory built by KLUS as fixtures with 4.5w/ft or less.
Application

- lighting assembly in steel pipe handrails
Assembly
- POR fixture is mounted inside the railing with the use of POR mounting inserts.
Additional Information
- two different mounting inserts allow mounting the extrusion in handrails with an inner diameter from 41 mm to 48 mm (1.65'' to 1.92'')
- the extrusion can be sealed to IP67
- max. length of POR fixture - 104.8 cm (41.29”)
- max. Watt/ft - 15W/M (4.6W/F)
Suitable for steel, stainless steel or aluminum. It is possible to seal POR extrusion and achieve an IP67 rating. Turn off LED lights during peak
• Turn off LED lights during peak day light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.
CLICK CATALOG BUTTON For FULL

POR SPECIFICATIONS and INSPIRATION

for Your LED Application:		 POR CATALOG
POR
EXTRUSIONS		 COVERS /
LENSES 		END CAPS /
ACCESSORIES
STANDARD LEAD TIMES
Lead Time May Vary Based on Product Mix / Quantities Ordered
Standard Order - No Cutting
2 - 3 Days
Custom Cuts - Extrusions, Covers or LED Tape
3 - 5 Days
Custom Builds
2 - 3 Weeks
The lead times also apply to all expedited orders; however,
we will try our best to ship on the requested date.
ORDERS BELOW $150.00 are SUBJECT to a $15.00 SERVICE CHARGE
Please Provide SHIPPING ZIP CODE for Shipping Quote
CLICK IMAGE for LARGER VIEW

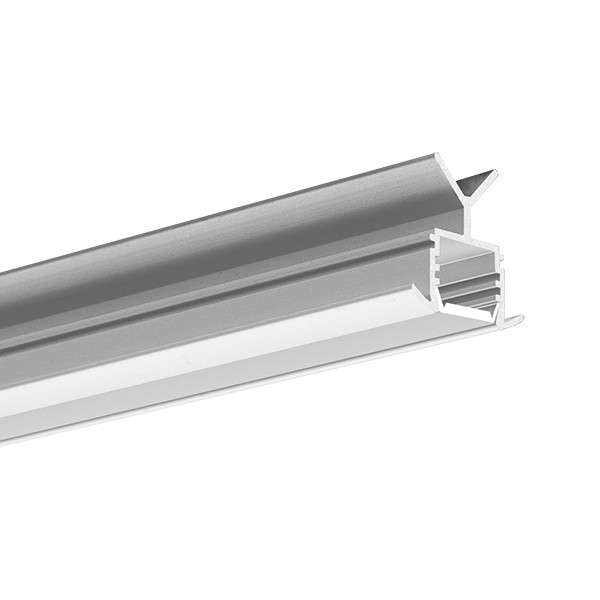

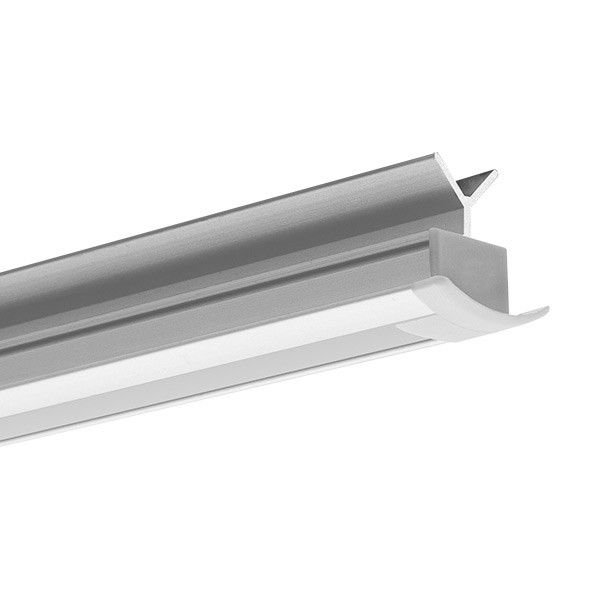

POR Extrusion
B6144ANODA_1 B6144ANODA_2 B6144ANODA_1 B6144ANODA_2 B6144ANODA_1 B6144ANODA_2 B6144ANODA_1 B6144ANODA_2

ITEM DESCRIPTION PRICE
B6144ANODA_1 39.4" / 1M Silver-Anodized Extrusion $28.50
B6144ANODA_2 78.75" / 2M Silver-Anodized Extrusion $59.00
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart POR Specifications POR How To

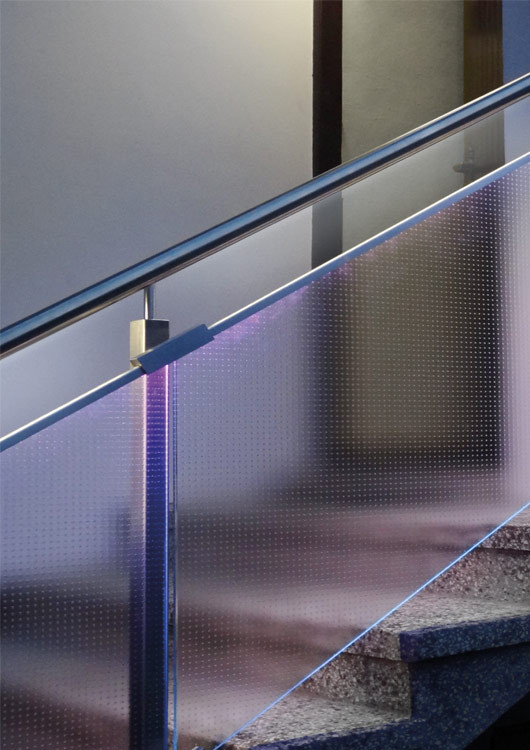

EXAMPLES
Por Por
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
1370 1369 17037 17040
1370 1369 1717037031 17040
HS Cover
Clear		 HS Cover
Frosted 		LIGER-22 Cover
Frosted 		LIGER-22 Cover
Black
ITEM DESCRIPTION PRICE
1370_1 39.4" / 1M HS Cover Clear $11.90
1370_2 78.75" / 2M HS Cover Clear $23.80
1369_1 39.4" / 1M HS Cover Frosted $11.90
1369_2 78.75" / 2M HS Cover Frosted $23.80
17037_1 39.4" / 1M Liger Cover Frosted $13.80
17037_2 78.75" / 2M Liger Cover Frosted $27.60
17040_1 39.4" / 1M Liger Cover Black $20.60
17040_2 78.75" / 2M Liger Cover Black $41
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
24021 24014 24111 00802L
24021 24014 24111 00802
POR
End Cap		 POR
Latch		 POR-PLUS
Latch		 8,8x1,2 Gland
ITEM DESCRIPTION PRICE

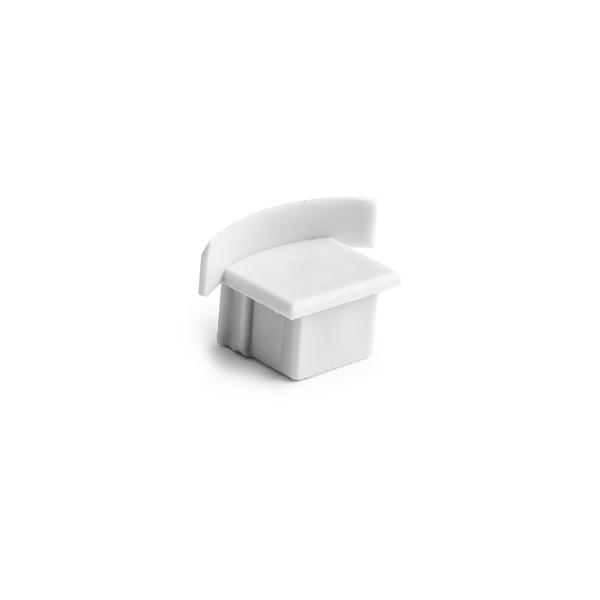

24021 POR End Cap $4.30

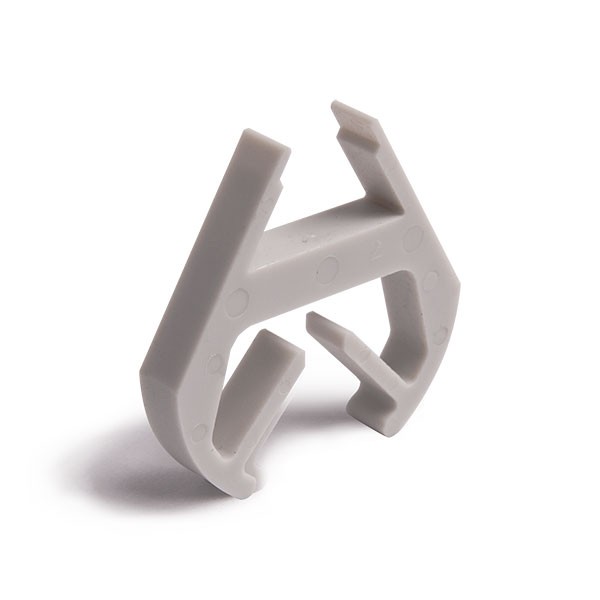

24014 POR Latch $6.20

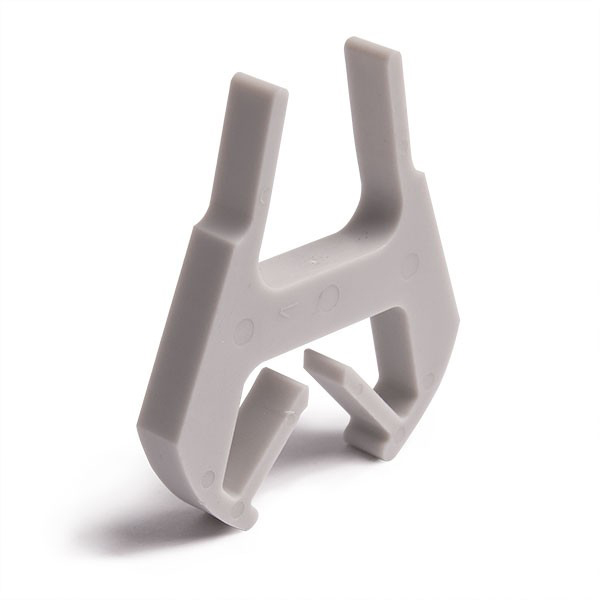

24111 POR LUS Latch $5.20
00802L 8,8x1,2 Gland $1.40
BACK to TOP
