KLUS Design SERPENT System

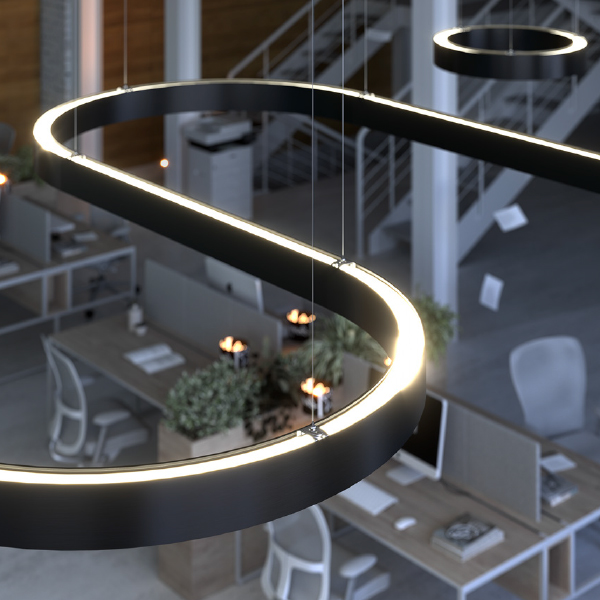

The SERPENT System is an innovative LED lighting system.
Unlimited Design Possibilities and Easy Installation.

To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info.

440-715-5539

EMAIL US

WE OFFER ALL KLUS ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US

These Cards Accepted and PROCESSED SECURELY

The SERPENT SYSTEM Consists of 3 Straight, 2 Semi-Circle, 1 1/4 and 1 1/8 Sections
allowing for limitless Surface Mount
and/or Hanging Installations Ready for your Design and Your Easy Installation.

SPECIFICATIONS & MOUNTING INSTRUCTIONS

Available Upon Request

- Anodized Silver Aluminum

- Frosted Diffuser

- Enabling Visual Consistency with Any Interior Design

- Surface Mount or Adjustable Steel Wire Suupension

- IP20

- 24V DC

- 3000K / CRI - 90

Application

- The SERPENT system makes it possible to build long, linear LED lighting fixtures. By combining selected modules, you can create unique LED installations where straight sections gosmoothly into arcs, semi-circles, create loops or bend at an
angle of 90° or 135°. fixtures are built from ready-made elements, eliminating to a minimum any specialized technological or craft activities.

- Creating Linear, Planar or Openwork Light Compositions


Hanging Mount	Hanging Mount	Hanging Mount	IP20

CLICK CATALOG BUTTON For FULL

MIFOR or SERPENT SYSTEM
SPECIFICATIONS and INSPIRATION

for Your LED Application:


EASY CONNECTION		SURFACE or SUSPENDED MOUNT

CLICK IMAGE for LARGER VIEW

SERPENT LINEAR SECTIONS
	ITEM	LIGHTING DIRECTION	SHAPE	POWER	MAX. LUMINOUS EFFICACY	LUMINOUS FLUX of the FIXTURE	LENGTH	PRICE
	FF02755-A01130023L1B	DOWN	LINEAR	14.4 W	89.3 lm/w	1286 lm	39.7" / 1000 mm	CONTACT US FOR PRICING
	FF02755-A01130035L1B	UP & DOWN		21.6 W	91.4 lm/w	1972 lm	39.7" / 1000 mm
	FF02755-A01130046L2B	DOWN		28.8 W	89.3 lm/w	2572 lm	78.7" / 2000 mm
	FF02755-A01130069L2B	UP & DOWN		43.2 W	91.4 lm/w	3948 lm	78.7" / 2000 mm
	FF02755-A01130069L3B	DOWN		43.2 W	89.3 lm/w	5922 lm	118.1" / 3000 mm
	FF02755-A01130104L3B	UP & DOWN		64.8 W	91.4 lm/w	1972 lm	118.1" / 3000 mm
	FF02755-A01130023L1B	DOWN		14.4 W	89.3 lm/w	1286 lm	39.7" / 1000 mm
	FF02755-A01130046L2B			28.8 W	89.3 lm/w	2572 lm	78.7" / 2000 mm
	FF02755-A01130069L3B			43.2 W	89.3 lm/w	3858 lm	118.1" / 3000 mm
HEIGHT - 3.46" / 88 mm / WIDTH -1.89" / 48 mm

CLICK IMAGE for LARGER VIEW

SERPENT WHEEL SECTIONS
	ITEM	LIGHTING DIRECTION	SHAPE	POWER	MAX. LUMINOUS EFFICACY	LUMINOUS FLUX of the FIXTURE	LENGTH	PRICE
	FF02756-A01130018D2B	DOWN	1/2 WHEEL	11.5 W	89.0 lm/w	1023 lm	39.7" / 1000 mm	CONTACT US FOR PRICING
	FF02756-A01130018D4B	DOWN	1/4 WHEEL	11.3 W	89.0 lm/w	1005 lm	39.7" / 1000 mm
	FF02756-A01130028D2B	UP & DOWN	1/2 WHEEL	17.3 W	91.0 lm/w	1575 lm	78.7" / 2000 mm
	FF02756-A01130028D4B	UP & DOWN	1/4 WHEEL	17.0 W	91.0 lm/w	1547 lm	78.7" / 2000 mm
	FF02756-A01130037D3B	DOWN	1/2 WHEEL	22.6 W	89.0 lm/w	2010 lm	118.1" / 3000 mm
	FF02756-A01130055D3B	UP & DOWN	1/2 WHEEL	34.0 W	91.0 lm/w	3095 lm	118.1" / 3000 mm
	FF02756-A01130018D2B	DOWN	1/2 WHEEL	11.5 W	89.0 lm/w	1023 lm	39.7" / 1000 mm
	FF02756-A01130018D4B	DOWN	1/4 WHEEL	11.3W	89.0 lm/w	1005 lm	78.7" / 2000 mm
	FF02756-A01130037D3B	DOWN	1/2 WHEEL	22.6 W	89.0 lm/w	2010 lm	118.1" / 3000 mm
	FF02756-A01M30009D5B	DOWN	1/8 WHEEL	5.7 W	89.0 lm/w	507 lm	118.1" / 3000 mm
	FF02756-A01M30009D5B	DOWN	1/8 WHEEL	5.7 W	89.0 lm/w	507 lm	118.1" / 3000 mm
	FF02756-A01M30014D5B	UP & DOWN	1/8 WHEEL	8.5 W	91.0 lm/w	774 lm	118.1" / 3000 mm
LARBE 1/2 HEIGHT - 3.46" / 88 mm / WIDTH -39.37" / 1000 mm
SMALL 1/2 HEIGHT - 3.46" / 88 mm / WIDTH -19.69" / 500 mm
1/4 HEIGHT - 3.46" / 88 mm / WIDTH -19.69" / 500 mm
1/8 HEIGHT - 3.46" / 88 mm / WIDTH -19.84" / 500 mm
