'The Application of LED Solid State Technology for Function, Design and Efficiency'
ASSEMBLED, BUILT or MODIFIED

in the USA
KLUS Design POKET Extrusion
ROUND LED EXTRUSION
To Order, Please Phone or Email Us. We Take Payment Info by Phone. For Your Security, Please do not Email Card Info. 440-715-5539 EMAIL US
WE OFFER ALL KLUS ITEMS. CONTACT US For ITEMS NOT SHOWN. - 440-715-5539 | EMAIL US
These Cards Accepted and PROCESSED SECURELY
Visa Master Card Discover Networks Solutions Secure
Klus LED Tape Lightd, LED Strips Mifor

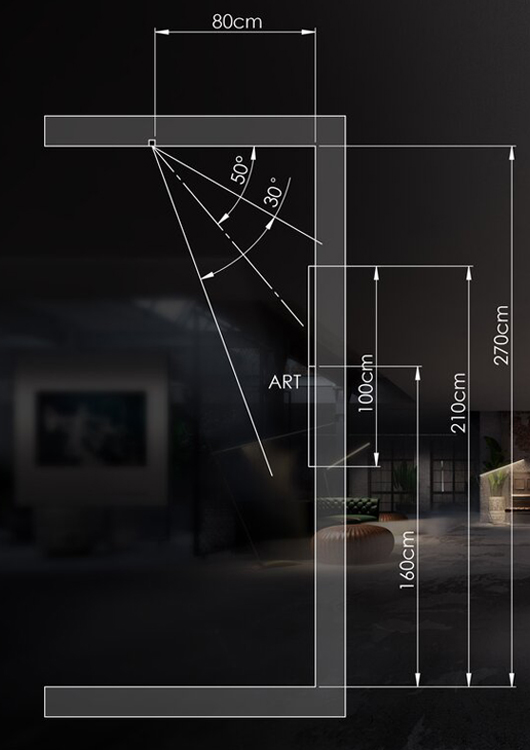

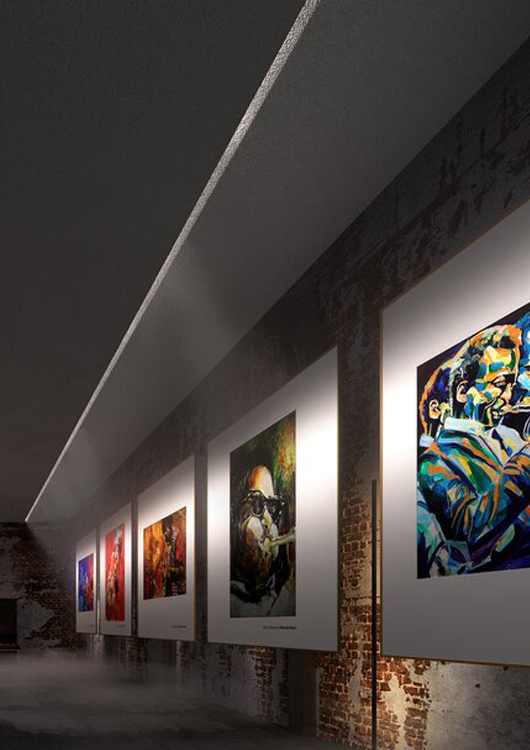

Linear gallery, stage or exhibition lighting
Decorative lighting - and functional

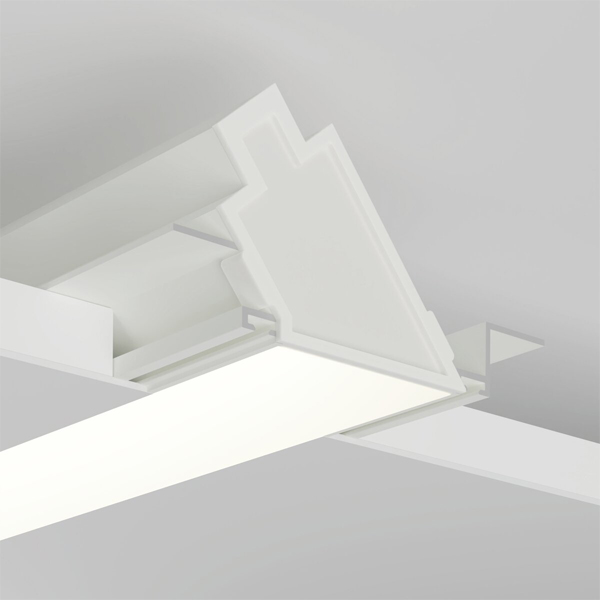

The lighting fixture integrates with the mounting surface

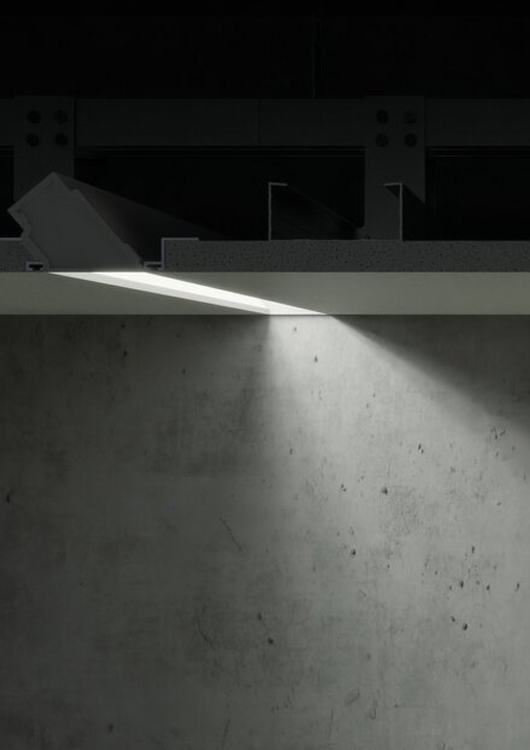

Hidden light source - Lighting angle: 50 Degrees
Application

- for the construction of hanging lighting fixtures with a circular cross-section - in drywall, with screws
- for the construction of hanging lighting lines
Assembly
Mounting to 12,5 mm - 0.50" drywall - Stable mounting to a suspended ceiling

in order to protect the lighting fixture during installation, a TECH-KA protective insert should be used Mounting to 12,5 mm - 0.50" drywall
Stable mounting to a suspended ceilinged
Additional information

Simple, solid construction- can be easily connected into runs and systems. Standard lengths of KLUŚ profiles and covers: 1000 mm (tolerance ± 1.5 mm) and 2005 mm /3010 mm (tolerance + 5 mm); for selected covers: 6050 mm, 10050 mm (tolerance + 5 mm) when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUS. light hours in outdoor applications to avoid excessive heat buildup which will result in diminished LED life.
POKET
EXTRUSIONS		 COVERS /
LENSES 		END CAPS /
ACCESSORIES

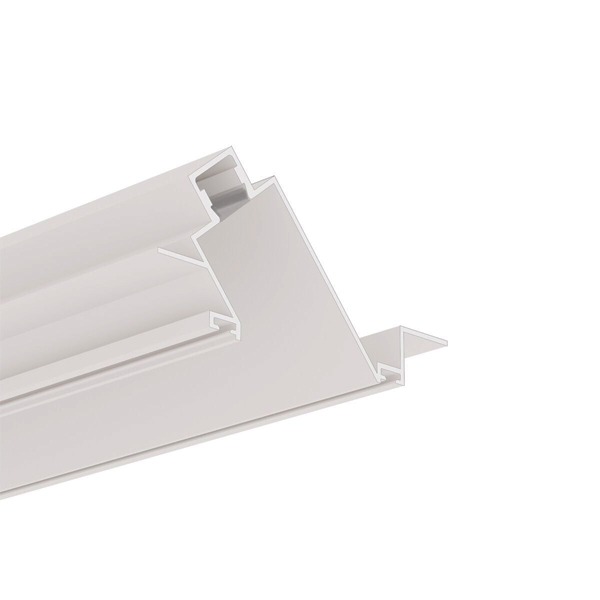

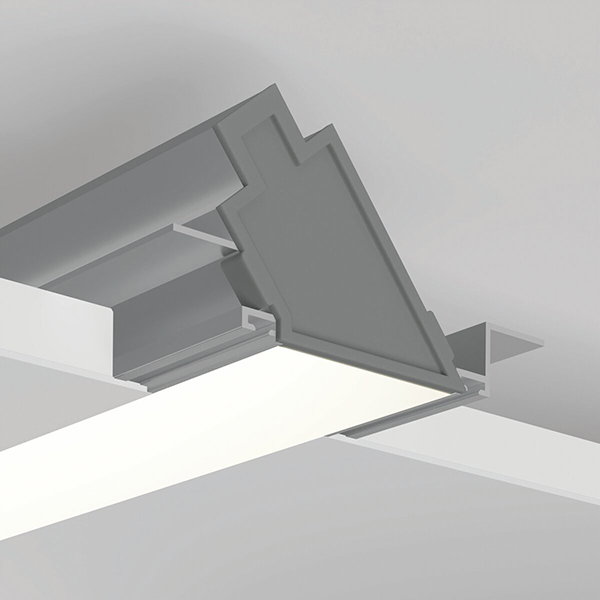

POKET Extrusion
ITEM DESCRIPTION PRICE
A01179N_1 39.4" / 2M POCKET Non-Anodized Extrusion $62.25
A01179N_2 79.75" / 2M POCKET Non-Anodized Extrusion $125.00
A01179N_3 118.11" / 3M POCKET Non-Anodized Extrusion $185.00
A01179L10OD_2 79.75" / 2M POCKET White Lacquered Extrusion $235.00
A01179L10OD_3 118.11" / 3M POCKET White Lacquered Extrusion $335.40
Download for Achieving Line of Light, Full Specifications, Dimensions and Instructions
Here in the US, one of the more important features of LED lighting in direct view, is to achieve “a clean line of light” or in other words, no visible diodes from the LED tape light inside the fixture. Distilling this design constraint down to its basic components produces: Cones of Light and Covers. Expanding on these two characteristics gives us four elements of control when designing a fixture: Cover type, LED spacing, LED output, and Cover to LED spacing.
CLICK for PDF: KLUS Line of Light Chart JAZ Specifications JAZ Instructions How To
EXAMPLES
BACK to TOP

CLICK IMAGE for LARGER VIEW
COVERS / LENSES
B17208F_1 / B17208F_2 / B17208F_3
17162V1

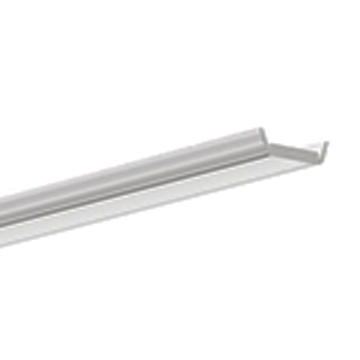

HS-11 Cover - Frosted
ITEM DESCRIPTION PRICE
B17208F_1 39.4" / 1M HS-11 Cover - Frosted $21.90
B17208F_2 78.75" / 1M HS-11 Cover - Frosted $21.90
B17208F_3 118.11" / 2M HS-11 Cover - Frosted $35.40
BACK to TOP

CLICK IMAGE for LARGER VIEW
END CAPS / ACCESSORIES
C24460C02 / C24460C10 42717
42724
 00802L
POKET

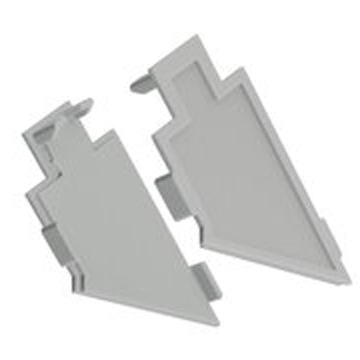

End Cap Set		 ZM-180
Connector

ZM-NA
Connector

8,8x1,2 Gland
ITEM DESCRIPTION PRICE
C24460C02 POKET End Cap Set - Gray $7.10
C24460C10 POKET End Cap Set - White $7.10

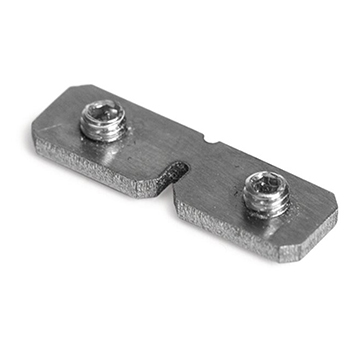

42717 ZM-NA Connector $10.30
42719 ZM-PION 135 Connector $11.00

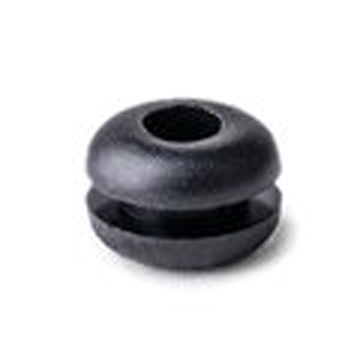

00802L 8,8x1,2 Gland $1.40
BACK to TOP
